CFL Xeon E processor family,SKT LGA1151,C246 chipset,4xD

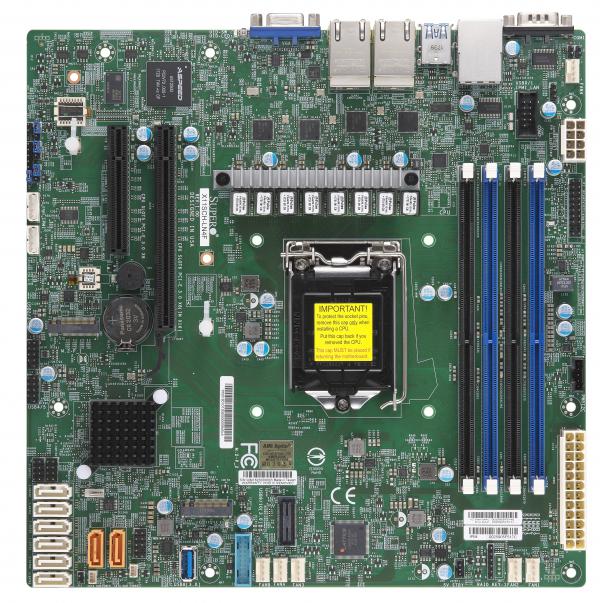

MBD-X11SCH-LN4F-O
https://safeconsulting.no/web/image/product.template/9910/image_1920?unique=7c1c8fe

kr 4,025.96 4025.96 NOK kr 4,025.96

kr 4,025.96

Not Available For Sale

    This combination does not exist.

    Key Features

    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    • Intel® C246 chipset
    • Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
    • Expansion slots: 1 PCIe 3.0 x8 (in x16) and 1 PCIe 3.0 x8 slots
    • 2x M.2 NGFF connectorsM.2 Interface:PCIe 3.0 x4Form Factor: 2280, 22110Key: M-Key
    • 8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
    • 2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
    • Quad GbE LAN ports via Intel® i210
    • 2 SuperDOM with built-in power
    • I/O: 1 VGA, 2 COM, 1 TPM header

    Product Specifications

    Product SKUs
    MBD-X11SCH-LN4F
    Physical Stats
    Form FactorMicro-ATX
    Dimension9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    CoreUp to 8 cores, 16 threads
    System Memory
    Memory Capacity4 DIMM slots
    Up to 128GB ECC , DDR4-2666MT/s
    Memory Type2666/2400/2133 MT/s SDRAM 72-bit,
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C246
    SATAIntel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500
    Graphics1 ASPEED AST2500 BMC port(s)
    Network ControllersQuad LAN with Intel® Ethernet Controller I210
    Input / Output
    SATA8 SATA3 (6Gbps) port(s)
    LAN4 RJ45 Gigabit Ethernet LAN ports
    USB6 USB 2.0 port(s) (4 via header; 2 rear)
    3 USB 3.1 Gen1 port(s) (2 via header; 1 type A)
    2 USB 3.1 Gen2 port(s) (2 rear)
    Video Output1 VGA port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x8
    M.2M.2 Interface: PCIe 3.0 x4
    Form Factor: 22110, 2280
    Key: M-Key
    System BIOS
    BIOS Type256MB UEFI
    BIOS FeaturesACPI 6.0
    SMBIOS 2.7
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0
    Management
    SoftwareSuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDUID/Remote UID
    CPU / System Overheat LED
    FAN6x 4-pin fan headers (up to 6 fans)
    Thermal control tachometer fan connectors
    Fan speed control
    6 fans with tachometer status monitoring
    Overheat LED indication
    Other FeaturesWOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00042-0N1STD I/O Shield for X11SCH-LN4F with EMI Gasket
    Retail Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00042-0N1STD I/O Shield for X11SCH-LN4F with EMI Gasket
    QRG
    Part NumberQuantityDescription
    MNL-2105-QRG1Motherboard Quick Reference Guide

    Optional Part List

    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H-SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H-SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
