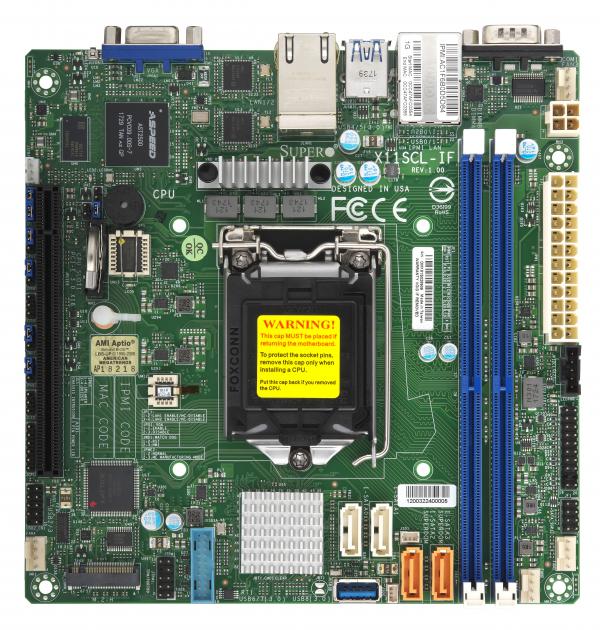

X11SCL-IF,SKT LGA1151,2x DDR4-2666MHz ECC UDIMM,C242 PCH

Name: X11SCL-IF,SKT LGA1151,2x DDR4-2666MHz ECC UDIMM,C242 PCH
Brand: supermicro
SKU: MBD-X11SCL-IF-O
Price: 2465.26 NOK
Availability: BackOrder

SKU:

MBD-X11SCL-IF-O

kr 2,465.26 2465.26 NOK kr 2,465.26

kr 2,465.26

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X11SCL-IF-O is a robust Mini-ITX motherboard designed for intensive applications. Featuring the Intel® C242 chipset, it supports 8th/9th Gen Intel® Core™ i3/Pentium®/Celeron® and Intel® Xeon® E-2100/E-2200 processors, delivering powerful performance for your computing needs. With dual GbE LAN, extensive storage options, and various connectivity ports, it is an ideal solution for compact systems.

Key Features

8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Intel® C242 chipset
Up to 64GB DDR4 2666MHz ECC UDIMM; 2 DIMM slots
M.2 Interface:1 SATA/PCIe 3.0 x4Form Factor: 2280Key: M-Key
Dual GbE LAN with Intel® i210-AT
M.2 NGFF connector
4 SATA3 (6Gbps); RAID 0, 1, 5, 10
Support up to 6 Cores

Key Applications

High-performance computing
Compact servers
Industrial automation
Embedded systems

Description

The Supermicro MBD-X11SCL-IF-O Mini-ITX motherboard offers the perfect balance of performance and efficiency. Equipped with the Intel® C242 chipset, this motherboard supports a wide range of processors including the latest 8th and 9th Gen Intel® Core™ i3/Pentium®/Celeron® and Intel® Xeon® E-2100/E-2200 CPUs, providing robust processing power for various applications. Additionally, the board supports up to 64GB of DDR4 ECC UDIMM memory. It features dual GbE LAN, multiple USB ports, and M.2 interface for expansive connectivity and storage options. Designed with system stability and security in mind, the X11SCL-IF also includes comprehensive PC health monitoring and management features, making it an excellent choice for professional and industrial use.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SCL-iF
Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU	8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Core	Up to 6 cores, 12 threads
Note	BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity	2 DIMM slots Up to 64GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type	2667/2400/2133 MT/s SDRAM 72-bit,
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C242
SATA	Intel® C242 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® I210
Input / Output
USB	4 USB 2.0 port(s) (2 via header; 2 rear) 7 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A; 2 rear; 1 type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SATADOM(Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x16 (in x16 slot)
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280 Key: M-Key
System BIOS
BIOS Type	256MB UEFI
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Management
Software	SuperDoctor® 5,SUM, KVM with dedicated LAN,SSM,IPMI2.0, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	4x 4-pin fan headers (up to 4 fans) Thermal control tachometer fan connectors PWM fan speed control 4 fans with tachometer monitoring Overheat LED indication
Other Features	WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-0N	1	STD I/O Shield for X11SCL-F with EMI Gasket
Retail Package
I/O Cables
CBL-0044L	4	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-0N	1	STD I/O Shield for X11SSL-F with EMI Gasket
QRG
MNL-2088-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
TPM security module
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	1	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H	1	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671H	1	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
