  2. SKT LGA1151,C246 chipset,4x DDR4 2666 MHz ECC UDIMM,2x1G

SKT LGA1151,C246 chipset,4x DDR4 2666 MHz ECC UDIMM,2x1G

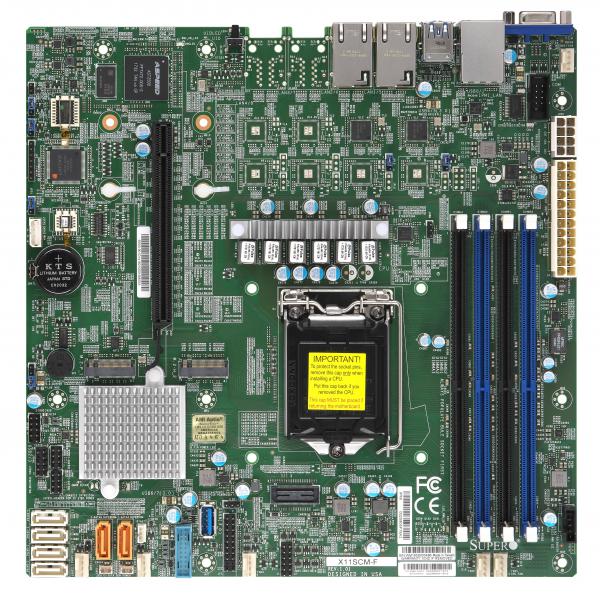

MBD-X11SCM-F-B
https://safeconsulting.no/web/image/product.template/9919/image_1920?unique=5a19258

kr 3,037.09 3037.09 NOK kr 3,037.09

kr 3,037.09

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SCM-F-B is a microATX motherboard featuring Intel® C246 chipset, dual LAN with Intel® Ethernet Controller I210-AT, 4 DIMM slots supporting up to 128GB DDR4-2666MHz ECC memory, and various expansion options including PCIe 3.0 and M.2 interfaces.

    Key Features

    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    • Intel® C246
    • Dual LAN with Intel® Ethernet Controller I210-AT
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16M.2 Interface:1 SATA/PCIe 3.0 x4 and 1 PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 2 SuperDOM with built-in power
    • 5x USB 3.0 ports, 4x USB 2.0 ports
    • 1 VGA, 1 COM, 1 TPM

    Key Applications

    • Servers
    • Workstations
    • High-performance computing
    • Data centers

    Description

    The Supermicro MBD-X11SCM-F-B is designed for high-performance computing and server applications. It supports a wide range of 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® processors and Intel® Xeon® E-2100/E-2200 processors. The motherboard features Intel® C246 chipset, dual LAN with Intel® Ethernet Controller I210-AT, and offers various expansion options including PCIe 3.0 and M.2 interfaces. It supports up to 128GB unbuffered ECC UDIMM in 4 DIMM slots, providing robust performance and reliability. Additional features include 5 USB 3.0 ports, 4 USB 2.0 ports, SATA3 ports supporting RAID 0,1,5,10, and comprehensive system management tools.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCM-F
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    Core
    • Up to 8 cores, 16 threads
    Note
    • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133 MT/s SDRAM 72-bit,
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C246
    SATA
    • Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 5 USB 3.1 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • 256MB UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • UEFI 2.7
    • USB Keyboard support
    • PCI 3.0
    Management
    Software
    • SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • 6 fans with tachometer status monitoring
    • Overheat LED indication
    Other Features
    • WOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00130-0N1STD I/O Shield for X11SCM-F with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00130-0N1STD I/O Shield for X11SCM-F with EMI Gasket
    QRG
    MNL-2075-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00131-0N11U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113)
    MCP-260-00132-0B11U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505)
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
