    Summary Description

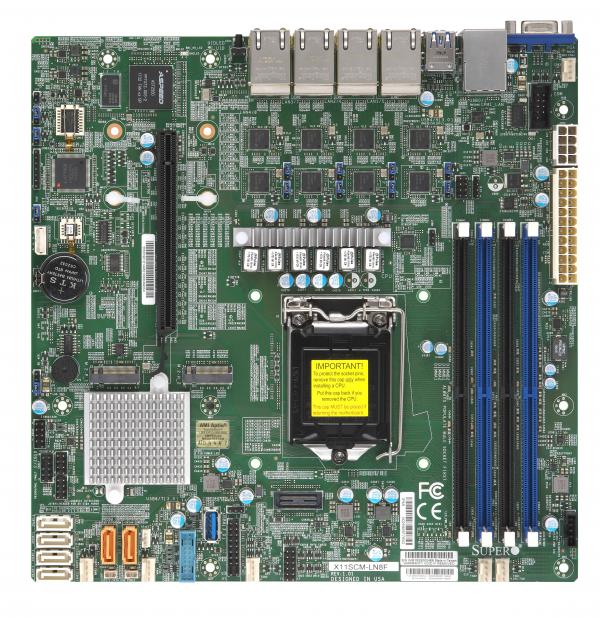

    The Supermicro MBD-X11SCM-LN8F-B is a feature-rich microATX motherboard that supports 8th/9th Gen Intel Core, Pentium, Celeron, and Intel Xeon E-2100/E-2200 processors. It offers robust connectivity, including 8 LAN ports and multiple USB ports, making it ideal for a diverse range of computing requirements.

    Key Features

    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    • Intel® C246
    • 8 LAN with Intel® Ethernet Controller I210-AT
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16M.2 Interface:1 SATA/PCIe 3.0 x4 and 1 PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 2 SuperDOM with built-in power
    • 5x USB 3.0 ports, 4x USB 2.0 ports
    • 1 VGA, 1 COM, 1 TPM

    Key Applications

    • High-performance computing
    • Data storage
    • Network connectivity
    • Server management
    • Industrial applications

    Description

    The Supermicro MBD-X11SCM-LN8F-B motherboard is designed for high performance and reliability, making it suitable for various computing needs. It supports 8th/9th Generation Intel Core i3, Pentium, Celeron, and Intel Xeon E-2100/E-2200 processors with up to 8 cores and 16 threads. The board features up to 128GB of Unbuffered ECC DDR4 memory across 4 DIMM slots, ensuring system stability. With its Intel C246 chipset, it includes 6 SATA3 ports supporting RAID 0, 1, 5, 10, and 8 LAN ports via Intel Ethernet Controllers. Additional features include M.2 interfaces, multiple USB ports, VGA, and TPM connectors, enhancing its versatility for various applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCM-LN8F
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    Core
    • Up to 8 cores, 16 threads
    Note
    • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133 MT/s SDRAM 72-bit,
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C246
    SATA
    • Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Octal LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) port(s)
    LAN
    • 8 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 5 USB 3.1 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • 256MB UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • UEFI 2.7
    • USB Keyboard support
    • PCI 3.0
    Management
    Software
    • SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • 6 fans with tachometer status monitoring
    • Overheat LED indication
    Other Features
    • WOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00130-0N1STD I/O Shield for X11SCM-LN8F with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00130-0N1STD I/O Shield for X11SCM-LN8F with EMI Gasket
    QRG
    MNL-2075-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00131-0N11U I/O Shield for X11SCM-LN8F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113)
    MCP-260-00132-0B11U I/O Shield for X11SCM-LN8F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505)
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
