    Summary Description

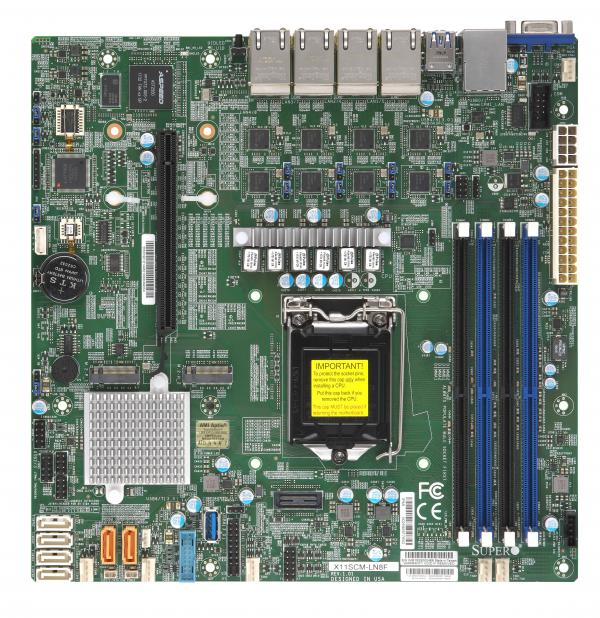

    Supermicro Motherboard MBD-X11SCM-LN8F-O

    Product Highlights

    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    • Intel® C246
    • 8 LAN with Intel® Ethernet Controller I210-AT
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16
      • M.2 Interface:1 SATA/PCIe 3.0 x4 and 1 PCIe 3.0 x4
      • M.2 Form Factor:2280/22110
      • M.2 Key:M-Key
    • Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 2 SuperDOM with built-in power
    • 5x USB 3.0 ports, 4x USB 2.0 ports
    • 1 VGA, 1 COM, 1 TPM

    Description

    Supermicro Motherboard MBD-X11SCM-LN8F-O

    Product Specifications

    Product SKUs:
    MBD-X11SCM-LN8F
    Physical Stats
    Form FactormicroATX
    Dimension9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    CoreUp to 8 cores, 16 threads
    NoteBIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
    System Memory
    Memory Capacity4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz
    Memory Type2666/2400/2133 MT/s SDRAM 72-bit,
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C246
    SATAIntel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500
    Graphics1 ASPEED AST2500 BMC port(s)
    Network ControllersOctal LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA6 SATA3 (6Gbps) port(s)
    LAN8 RJ45 Gigabit Ethernet LAN ports
    USB4 USB 2.0 port(s) (2 via header; 2 rear)5 USB 3.1 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output1 VGA port(s)
    Serial Port1 COM Port(s) (1 header)
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x16
    M.2M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
    System BIOS
    BIOS Type256MB UEFI
    BIOS FeaturesACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
    Management
    SoftwareSuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power ConfigurationsACPI Power Management
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDUID/Remote UIDCPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportThermal Monitor 2 (TM2) supportPECI
    FAN6x 4-pin fan headers (up to 6 fans)Thermal control tachometer fan connectorsFan speed control6 fans with tachometer status monitoringOverheat LED indication
    Other FeaturesWOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
