  2. X11SCV-L,Mini ITX,Coffeelake PCH H310,LGA1151,PCIe x16,US

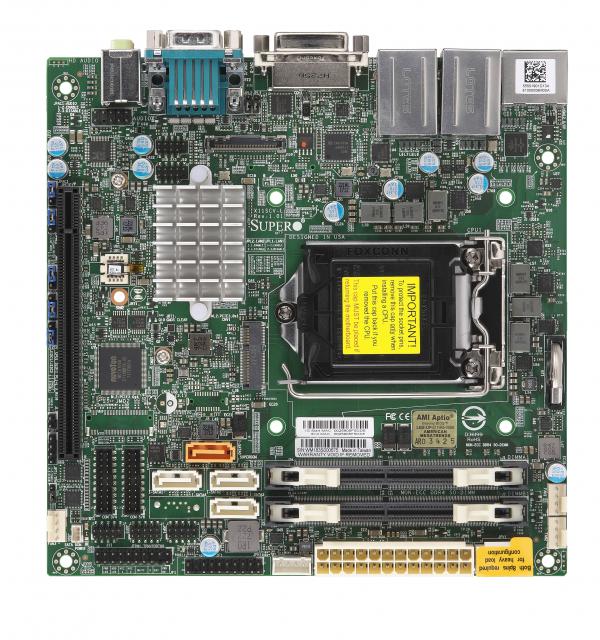

X11SCV-L,Mini ITX,Coffeelake PCH H310,LGA1151,PCIe x16,US

MBD-X11SCV-L-B
https://safeconsulting.no/web/image/product.template/9929/image_1920?unique=5a19258

kr 2,516.09 2516.09 NOK kr 2,516.09

kr 2,516.09

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SCV-L-B motherboard is designed for high-performance computing, supporting 8th/9th Generation Intel Core processors with up to 32GB of DDR4-2666MHz memory in a Mini-ITX form factor.

    Key Features

    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP
    • Single LAN with Intel® PHY I219LM LAN controllerSingle LAN with Intel® Ethernet Controller I210-AT
    • Intel® H310
    • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots
    • 1 PCIe 3.0 x161 M.2 E-Key PCIe 2.0 x1, 2230
    • Intel® H310 controller for 4 SATA3 (6 Gbps) ports;Only I-SATA0 - I-SATA3
    • 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,2 Independent Displays

    Key Applications

    • High-performance computing
    • Server applications
    • Small form factor systems
    • Industrial automation

    Description

    The Supermicro MBD-X11SCV-L-B motherboard offers a robust platform with support for 8th/9th Generation Intel Core i9/i7/i5/i3, Pentium, and Celeron processors. It features Intel H310 chipset, dual LAN ports with Intel PHY I219LM and I210-AT controllers, and multiple video output options including DVI-D, HDMI, DP, and eDP. The motherboard supports up to 32GB of unbuffered non-ECC DDR4-2666MHz memory, and comes with 4 SATA3 (6 Gbps) ports, ensuring ample storage capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCV-L
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 65W TDP
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2666MT/s
    Memory Type
    • non-ECC DDR4 SODIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® H310
    SATA
    • Intel® H310 controller for 4 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 8 USB 3.2 Gen2 port(s) (2 rear type A; 4 rear; 2 rear type C)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s)
    Serial Port
    • 6 COM Port(s) (4 header; 2 rear)
    DOM
    • 1 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16
    M.2
    • M.2 Interface: 1 PCIe 2.0 x1
    • Form Factor: 2230
    • Key: E-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • PCI FW 3.0
    • UEFI 2.6
    • RTC Wakeup BIOS setup option
    Management
    Software
    • SuperDoctor® 5, NMI, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ATX Power connector, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, HT, 3 -fan status, +5V standby, +5V, +3.3V, +1.8V
    LED
    • CPU / System Overheat LED
    Temperature
    • PECI
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    • Thermal control tachometer fan connectors
    • System level control
    • 3 fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -30°C - 60°C (-22°F - 140°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00136-0N1Standard I/O Shield for X11SCV-Q
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00136-0N1Standard I/O Shield for X11SCV-Q
    QRG
    MNL-2096-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    I/O Shield
    MCP-260-00137-0B11U I/O Shield for X11SCV-L in SC504 Chassis
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm
