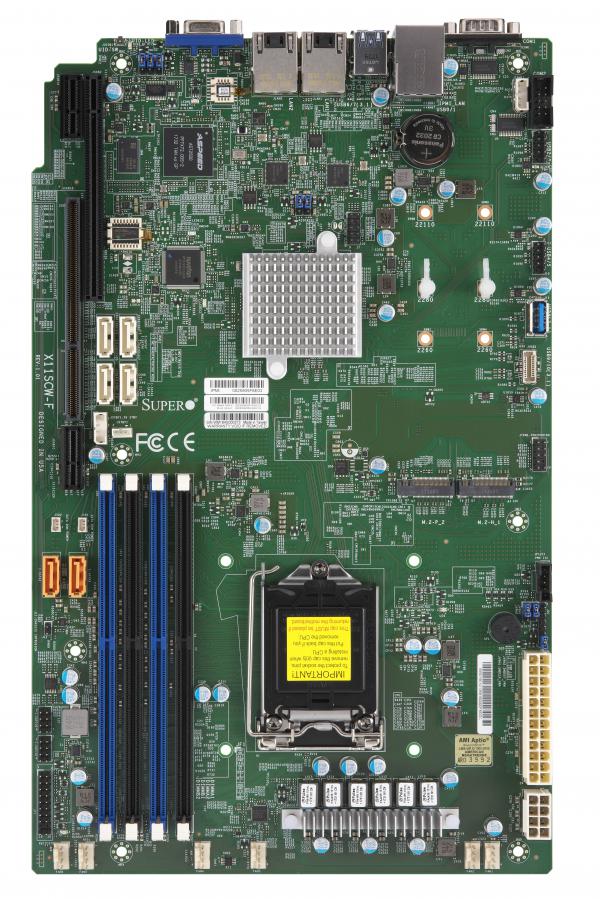

SKT LGA1151,C246 chipset,4x DDR4 2666 MHz ECC UDIMM,2x1G

Name: SKT LGA1151,C246 chipset,4x DDR4 2666 MHz ECC UDIMM,2x1G
Brand: supermicro
SKU: MBD-X11SCW-F-O
Price: 3100.63 NOK
Availability: BackOrder

SKU:

MBD-X11SCW-F-O

kr 3,100.63 3100.63 NOK kr 3,100.63

kr 3,100.63

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X11SCW-F-O motherboard is built with the Intel C246 chipset and features support for 8th/9th Generation Intel Core i3, Pentium, and Celeron processors, along with Intel Xeon E-2100 and E-2200 processors. This motherboard supports up to 128GB of ECC DDR4 memory, features dual LAN with Intel I210-AT controllers, and provides multiple expansion options including PCIe 3.0 slots and M.2 interfaces.

Key Features

8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Intel® C246
Dual LAN with Intel® Ethernet Controller I210-AT
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCIe 3.0 x16,1 PCIe 3.0 x4 (in x8 slot)M.2 Interface:1 SATA/PCIe 3.0 x4 and 1 PCIe 3.0 x4M.2 Form Factor:2260/2280/22110M.2 Key:M-Key
Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 USB 3.1 Gen2 (2 header, 2 rear), 1 USB 3.1 Gen1 Type A, 6 USB 2.0
1 VGA port

Key Applications

Server systems
Data centers
Virtualization
High-performance computing
Network appliances

Description

The Supermicro MBD-X11SCW-F-O is a versatile motherboard designed to accommodate a variety of server applications. It supports 8th/9th Generation Intel Core i3/Pentium/Celeron processors and Intel Xeon E-2100 and E-2200 processors. The motherboard features the Intel C246 chipset, supporting a maximum of 128GB of unbuffered ECC DDR4 memory across four DIMM slots. With dual LAN via Intel I210-AT controllers, the MBD-X11SCW-F-O ensures robust network connectivity. Expansion options include 1 PCIe 3.0 x16 slot, 1 PCIe 3.0 x4 (in x8 slot), and M.2 interfaces for additional flexibility. With 6 SATA3 ports and various USB ports, this motherboard offers comprehensive storage and connectivity options. It also integrates ASPEED AST2500 BMC for system management, enhancing overall reliability for critical applications.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SCW-F
Physical Stats
Form Factor	Proprietary WIO
Dimension	8" x 13" (20.32cm x 33.02cm)
Processor
CPU	8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Core	Up to 8 cores, 16 threads
Note	BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type	2666/2400/2133 MT/s SDRAM 72-bit,
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C246
SATA	Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA	6 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.1 Gen2 port(s) (2 via header; 2 rear) 6 USB 2.0 port(s) (4 via header; 2 rear) 1 USB 3.1 Gen1 port(s) (1 type A)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot)
M.2	M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4 Form Factor: 2260/2280/22110 Key: M-Key
System BIOS
BIOS Type	256MB UEFI
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Management
Software	SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	ACPI Power Management
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	6x 4-pin fan headers (up to 6 fans) Thermal control tachometer fan connectors Fan speed control 6 fans with tachometer status monitoring Overheat LED indication
Other Features	WOL, UID, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
Retail Package
I/O Cables
CBL-0044L	6	57.5CM SATA FLAT S-S PBF
QRG
MNL-2070-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
TPM security module
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	1	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H	1	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671H	1	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
