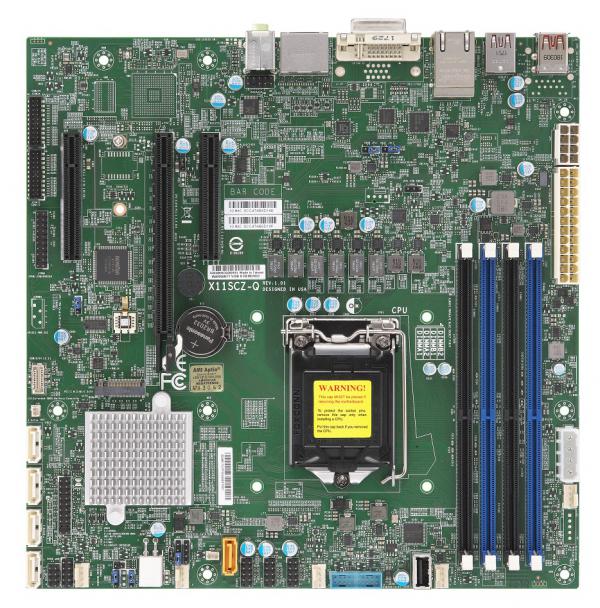

X11SCZ-Q, Micro ATX, Coffeelake PCH Q370, LGA1151

MBD-X11SCZ-Q-O
https://safeconsulting.no/web/image/product.template/9934/image_1920?unique=5a19258

kr 3,672.47 3672.4700000000003 NOK kr 3,672.47

kr 3,672.47

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SCZ-Q-O motherboard is designed with Intel's Q370 chipset, supporting 8th/9th Generation Intel Core processors. It features single socket LGA-1151, up to 128GB DDR4 memory, and dual LAN ports.

    Key Features

    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor.Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    • Intel® Q370
    • Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16,2 PCIe 3.0 x4 (in x8 slot)M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 DVI - I port, 2 DP (DisplayPort) ports,3 Independent Displays

    Key Applications

    • Professional workstations
    • Enterprise environments
    • High-performance computing
    • Networking solutions
    • Multimedia and graphics-intensive tasks

    Description

    The Supermicro MBD-X11SCZ-Q-O motherboard is engineered to deliver strong performance and extensive features. It supports 8th/9th Generation Intel Core i9/i7/i5/i3, Pentium, and Celeron processors with a single socket LGA-1151. The Intel Q370 chipset ensures robust connectivity and data transfer capabilities. With the ability to support up to 128GB of DDR4-2666MHz memory, this motherboard caters to high memory demands. The inclusion of dual LAN ports, multiple PCIe slots, SATA3 ports, and various USB ports, including USB 3.1 Gen2, ensures versatility for different applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCZ-Q
    Physical Stats
    Form Factor
    • uATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® Q370
    SATA
    • Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 3.1 Gen2 port(s) (2 via header; 3 rear type A; 1 rear type C)
    • 7 USB 2.0 port(s) (6 via header; 1 Type A)
    • 2 USB 3.1 Gen1 port(s) (2 via header)
    Video Output
    • 2 DP (DisplayPort) port(s), 1 DVI - I port(s)
    Serial Port
    • 4 COM Port(s) (4 header)
    DOM
    • 1 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16,
    • 2 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • PCI FW 3.0
    • UEFI 2.6
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, NMI, AMT, vPro, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, ATX Power connector, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • 5 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
    Temperature
    • Thermal Control for 5 Fan Connectors
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Dual Cooling Zone
    • 5 fans with tachometer status monitoring
    Other Features
    • RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00126-0N1Standard I/O Shield for X11SCZ with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L557.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00126-0N1Standard I/O Shield for X11SCZ with EMI Gasket
    QRG
    MNL-2086-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00127-0N-1U I/O Shield for X11SCZ with EMI Gasket in SC813 Chassis
    MCP-260-00128-0B-1U I/O Shield for X11SCZ with EMI Gasket in SC510 Chassis
    Serial Port Cable
    CBL-CUSB-0984-Dual Serial Port Breakout Cable 20cm
    USB3.1 Cable
    CBL-CUSB-0835-Dual USB3.1 Type A Cable with Bracket
