X11SDV-12C-TLN2F,Embedded Xeon-D Mini ITX,12 Core,Dual10

MBD-X11SDV-12C-TLN2F-B
https://safeconsulting.no/web/image/product.template/9947/image_1920?unique=7c1c8fe

kr 22,827.78 22827.78 NOK kr 22,827.78

kr 22,827.78

Not Available For Sale

    This combination does not exist.

    Summary Description

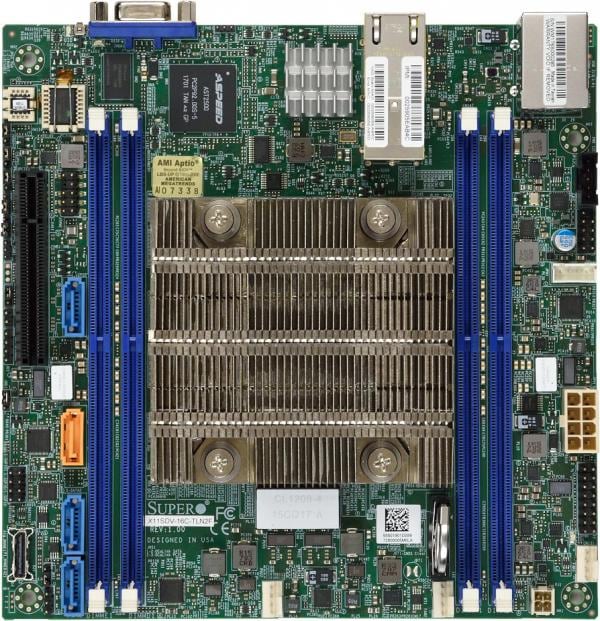

    Supermicro Motherboard MBD-X11SDV-12C-TLN2F-B

    Product Highlights

    • Intel® Xeon® Processor D-2166NT,
      • 12-Core, 24 Threads, 85W
    • Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots
    • 1 PCIe 3.0 x8
      • 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
    • Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
      • 4 SATA ports via OCuLink (or PCIe 3.0 x4 for NVMe)
    • Dual LAN with 10GBase-T via Intel® SoC
    • System on Chip
    • 2 USB 3.0 ports (rear)
      • 2 USB 2.0 ports (via header)
    • 12V DC or ATX Power Input

    Description

    Supermicro Motherboard MBD-X11SDV-12C-TLN2F-B

    Product Specifications

    Product SKUs:
    MBD-X11SDV-12C-TLN2F
    Physical Stats
    Form FactorMini-ITX
    Dimension6.75" x 6.75" (17.15cm x 17.15cm)
    Processor
    CPUIntel® Xeon® Processor D-2166NT
    CoreUp to 12 cores, 24 threads / 17MB Cache
    System Memory
    Memory Capacity4 DIMM slotsUp to 512GB ECC LRDIMM, DDR4-2133MHz; Up to 256GB ECC RDIMM, DDR4-2133MHz
    Memory Type2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
    DIMM SizesLRDIMM: 16GB, 32GB, 64GB, 128GBRDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    SATASoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500
    Graphics1 ASPEED AST2500 BMC port(s)
    Network ControllersDual LAN with 10Gbase-T
    Input / Output
    LAN1 RJ45 Dedicated IPMI LAN port2 RJ45 10GBase-T ports
    USB2 USB 2.0 port(s) (2 via header)2 USB 3.0 port(s) (2 rear)
    Video Output1 VGA port(s)
    DOM1 SATA DOM (Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x81 PCIe 3.0 x4 NVMe Internal Port via OCuLink
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.1SMBIOS 3.1UEFI 2.6PCI FW 3.2
    Management
    SoftwareSuperDoctor® 5, SUM, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power ConfigurationsACPI Power Management, +12V DC Power Input
    PC Health Monitoring
    VoltageVBAT, Supports system management utility, Monitors CPU voltages, 3 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages
    LEDUID/Remote UIDPower LEDBMC/IPMI Heartbeat LED
    TemperatureThermal Control for 3 Fan Connectors
    FAN3x 4-pin fan headers (up to 3 fans)Fan speed controlDual Cooling Zone3 fans with tachometer monitoringPulse Width Modulated (PWM) fan connectorsSupport 3-pin fans (w/o speed control)
    Other FeaturesUID, RoHS, Node Manager Support, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
