  2. X11SDW-8C-TP13F,Intel SKL Xeon D Soc,4xDDR4 2400MHz 512G

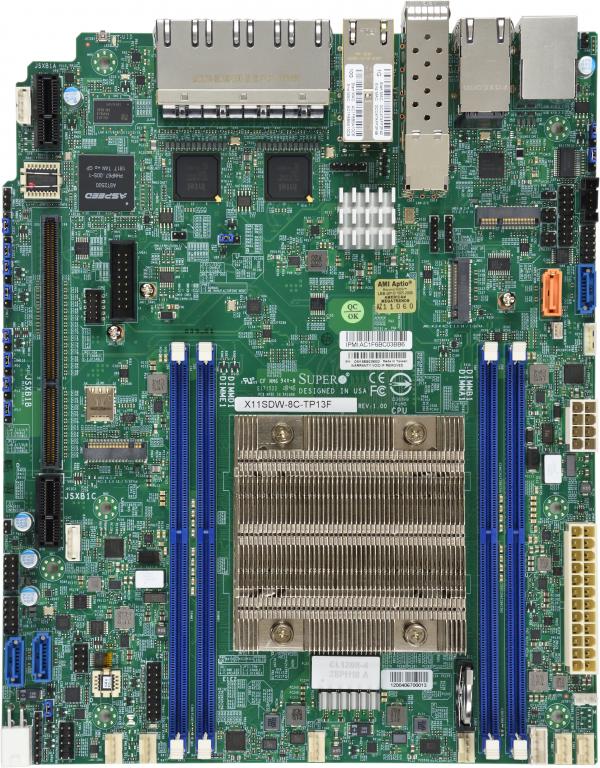

X11SDW-8C-TP13F,Intel SKL Xeon D Soc,4xDDR4 2400MHz 512G

MBD-X11SDW-8C-TP13F-O
https://safeconsulting.no/web/image/product.template/9960/image_1920?unique=5a19258

kr 16,875.56 16875.56 NOK kr 16,875.56

kr 16,875.56

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SDW-8C-TP13F-O motherboard offers exceptional performance and reliability with its Intel® Xeon® Processor D-2146NT, quad 1GbE LAN, dual 10GBase-T, and dual 10G SFP+ LAN ports. It's designed for intensive computing tasks and supports up to 512GB ECC DDR4 memory.

    Key Features

    • Intel® Xeon® Processor D-2146NT., Single Socket FCBGA-2518 supported, CPU TDP support Up to 80W TDP
    • Intel Quick Assist Technology
    • Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x32 Left Riser Slot1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/221101 M.2 E-Key PCIe 3.0 x1, 22301 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 2242/3042
    • SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Quad LAN with Intel® Ethernet Controller I350-AM4Dual LAN with 10G SFP+ LAN via SoCDual LAN with 10Gbase-TQuad LAN with 1GbE with Inte® I350-AM4Single LAN with 1GbE with Intel® I210Total 13 LAN portsSingle LAN with Realtek RTL8201N PHY (dedicated IPMI)
    • Supports 12V DC power input
    • System on Chip
    • 1 VGA port,Header Only

    Key Applications

    • High-performance computing
    • Enterprise servers
    • Networking
    • Storage solutions

    Description

    The Supermicro MBD-X11SDW-8C-TP13F-O motherboard is built for demanding environments, leveraging the power of the Intel® Xeon® Processor D-2146NT. It supports up to 12V DC power input and features an extensive range of connectivity options including multiple LAN ports, SATA ports, USB ports, and PCIe slots. With support for up to 512GB ECC DDR4 memory, this motherboard ensures robust performance and reliability. Additional features include Intel Quick Assist Technology, comprehensive system monitoring capabilities, and support for various expansion options, making it an ideal choice for high-performance computing and networking applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SDW-8C-TP13F
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 9.6" (20.32cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® Processor D-2146NT
    • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 80W TDP
    Core
    • Up to 8 cores, 16 threads
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 512GB ECC LRDIMM, DDR4-2133MT/s; Up to 256GB ECC RDIMM, DDR4-2133MT/s
    Memory Type
    • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    • Header Only
    Network Controllers
    • Quad LAN with 1GbE with Intel® I350-AM4
    • Dual LAN with 10Gbase-T
    • Dual LAN with 10G SFP+ LAN via SoC
    • Quad LAN with Intel® Ethernet Controller I350-AM4, Total 13 LAN ports
    • Single LAN with 1GbE with Intel® I210
    • Single LAN with Realtek RTL8201N PHY (dedicated IPMI)
    Input / Output
    SATA
    • 4 SATA3 port(s)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 2 10G SFP+ LAN ports
    • 2 RJ45 10GBase-T ports
    • 9 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.1 Gen1 port(s) (2 rear type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 1 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x32 Left Riser Slot
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x1; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2280/22110, 2230, 2242/3042
    • Key: M-Key, E-Key, B-Key
    System BIOS
    BIOS Type
    • 256MB UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • UEFI 2.7
    • PCI FW 3.2
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN, Intel® Node Manager,IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages, 5 (4-pin)
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Overheat LED indication
    Other Features
    • WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00143-0n1STD I/O SHIELD
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00143-0n1STD I/O SHIELD
    Quick Installation Guide
    MNL-2180-QRG1X11SDW Series Quick Installation Guide
    VGA Cable
    CBL-CDAT-0850150CM VGA Cable DB15

    Optional Part List

    Part Number Quantity Description
    Riser Card
    RSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots
    AOM-SDW-B16X21RHS WIO Riser card with three PCI-E slots (support X11SDW series only)
    SATA Power Cable
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    VGA Cable
    CBL-CDAT-0850150CM VGA Cable DB15
