Skylake-EP (LGA3647) SKT-P up to 165W TDP+C622,6x DDR4

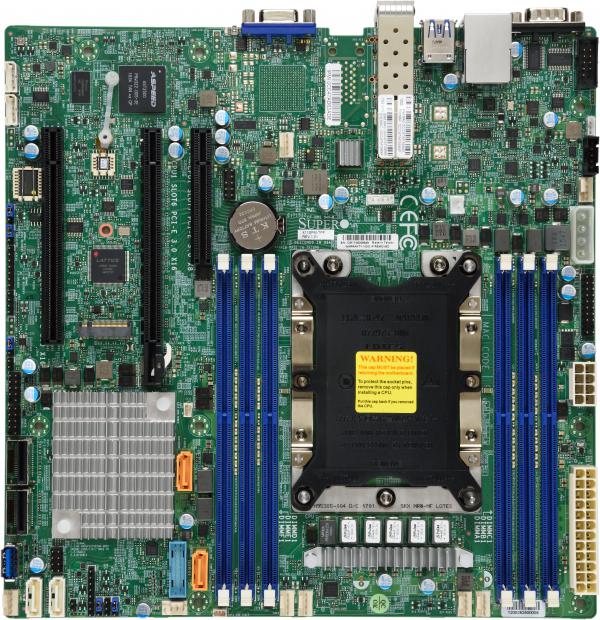

MBD-X11SPM-TPF-O
https://safeconsulting.no/web/image/product.template/916/image_1920?unique=73d2afe

kr 5,337.15 5337.150000000001 NOK kr 5,337.15

kr 5,337.15

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SPM-TPF-O motherboard features support for 2nd Gen Intel Xeon Scalable Processors, dual LAN with 10G SFP+, 12 SATA3 ports, up to 1.5TB DDR4-2933MHz memory, and two PCIe 3.0 x16 slots.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP
    • Intel® C622 chipset
    • Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
    • Expansion slots: 2 PCIe 3.0 x16, 1 PCIe 3.0 x8 (in x8)
    • M.2 NGFF connectorM.2 Interface:PCIe 3.0 x4Form Factor: 2242, 2280Key: M-Key
    • 2 10G SFP+
    • 12 SATA3 (6Gbps) via C622
    • Supports 12V DC power input
    • 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
    • I/O: 1 VGA, 2 COM, 1 TPM header

    Key Applications

    • Enterprise Servers
    • Virtualization
    • Data Centers
    • High-Performance Computing
    • Storage Solutions

    Description

    Supermicro's MBD-X11SPM-TPF-O motherboard offers high performance and on-board connectivity for server applications. With support for Intel Xeon Scalable Processors, it accommodates up to 1.5TB of 3DS ECC RAM. The dual LAN 10G SFP+, multiple SATA3 ports, and robust PCIe expansion slots make it ideal for various intensive computing environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SPM-TPF
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP
    Core
    • Up to 28 cores
    System Memory
    Memory Capacity
    • 6 DIMM slots
    • Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 32GB, 64GB, 128GB
    • RDIMM: 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C622
    SATA
    • Intel® C622 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 10G SFP+ with Intel® X722 + Inphi CS4227
    Input / Output
    SATA
    • 12 SATA3 (6Gbps) port(s)
    LAN
    • 2 10G SFP+ LAN ports
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    • 3 USB 3 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x16,
    • 1 PCIe 3.0 x8
    M.2
    • M.2 Interface: PCIe 3.0 x4
    • Form Factor: 2280, 2242
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 3.0 or later
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 8 -fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00109-0N1STD I/O Shield for X11SPM-TPF with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L457.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00109-0N1STD I/O Shield for X11SPM-TPF with EMI Gasket
    QRG
    MNL-1939-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00114-0N-1U I/O Shield for X11SPM-TPF with EMI Gasket
    TPM security module
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
