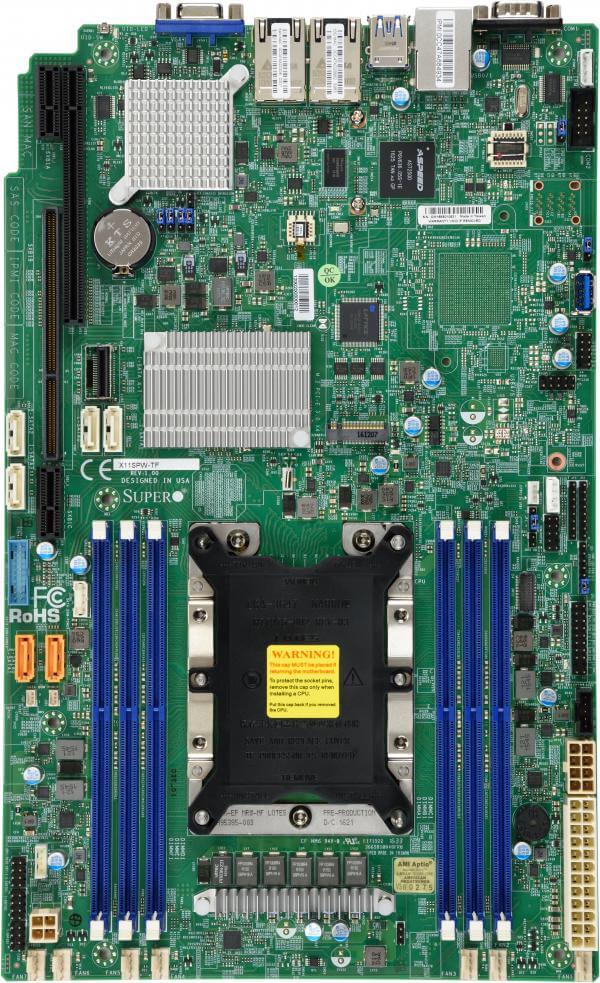

MBD-X11SPW-TF-BULK

MBD-X11SPW-TF-B
https://safeconsulting.no/web/image/product.template/921/image_1920?unique=774dd05

kr 5,336.56 5336.56 NOK kr 5,336.56

kr 5,336.56

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SPW-TF-B is designed for high-performance computing applications. It supports single Socket LGA-3647 with up to 28 cores and 1.5TB of 3DS ECC DDR4 memory. Ideal for scalable, reliable solutions.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP
    • Intel® C622 chipset
    • Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots
    • Expansion slots:1 PCIe 3.0 x8 (in x16), 1 PCIe 3.0 x32 Left Riser slot
    • M.2 NGFF connectorM.2 Interface:PCIe 3.0 x4 and SATAForm Factor: 2280, 22110Key: M-Key
    • 2 10GbE LAN ports
    • 10 SATA3 (6Gbps) via C622
    • I/O: 1 VGA, 2 COM, TPM header
    • 2 SuperDOM with built-in power

    Key Applications

    • High-Performance Computing
    • Data Centers
    • Server Applications
    • Enterprise Solutions
    • AI and Machine Learning

    Description

    The Supermicro MBD-X11SPW-TF-B motherboard is designed to meet the demands of high-performance computing applications. Featuring the Intel C622 chipset, it supports 2nd Gen Intel Xeon Scalable Processors with up to 28 cores. The board supports up to 1.5TB of 3DS ECC DDR4 memory across 6 DIMM slots. Expansion slots include a PCIe 3.0 x8 (in x16 slot) and a PCIe 3.0 x32 left riser slot, along with M.2 NGFF connectors offering both PCIe 3.0 x4 and SATA interfaces. It also includes dual 10GbE LAN ports, 10 SATA3 ports, and comprehensive I/O options.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SPW-TF
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP
    Core
    • Up to 28 cores
    Note
    • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SPBIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 6 DIMM slots
    • Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 32GB, 64GB, 128GB
    • RDIMM: 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C622
    SATA
    • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 10GBase-T with Intel® X722 + X557
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 10GBase-T ports
    USB
    • 7 USB 2.0 port(s) (2 rear; 5 via header)
    • 2 USB 3.0 port(s) (2 rear)
    • 3 USB 3 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8 (in x16 slot),
    • 1 PCIe 3.0 x32 Left Riser Slot
    M.2
    • M.2 Interface: PCIe 3.0 x4; SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 3.0 or later
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL
    • UID
    • RoHS
    • Control of power-on for recovery from AC power loss
    • ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
