    Summary Description

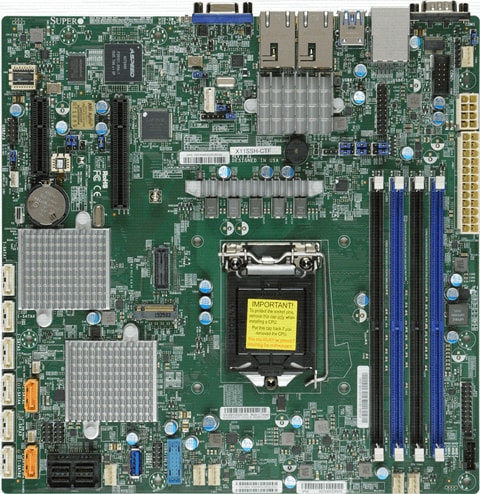

    The Supermicro MBD-X11SSH-CTF-O is a versatile Micro-ATX motherboard featuring Intel® C236 chipset. It supports Intel® Xeon® E3-1200 v6/v5, 7th/6th Gen Core® i3 series, Celeron®, and Pentium® processors. Ideal for a range of professional applications.

    Key Features

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots: 1 PCIe 3.0 x8, 1 PCIe 3.0 x2 (in x4)
    • M.2 NGFF connectorM.2 Interface:SATA and PCIe 3.0 x4Form Factor: 2260Key: M-Key
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
    • Dual 10GBase-T LAN with Intel® X550
    • 8 SAS3 (12Gbps) via Broadcom® 3008; RAID 0, 1, 10
    • I/O: 1 VGA, 2 COM, TPM header
    • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

    Key Applications

    • Workstations
    • Data Centers
    • Network Appliances
    • Storage Servers
    • Media Servers

    Description

    The Supermicro MBD-X11SSH-CTF-O is engineered to deliver performance and versatility. Featuring a single socket H4 (LGA 1151) that supports Intel® Xeon® E3-1200 v6/v5 and 7th/6th Gen Core® i3 series, this motherboard is ideal for both professional and personal use. It comes with Intel® C236 chipset, supports up to 64GB of Unbuffered ECC DDR4 memory, and features multiple expansion slots, including PCIe 3.0 x8 and x2, and M.2 interfaces. Additionally, it has extensive connectivity options such as dual 10GBase-T LAN ports, USB 3.0 and 2.0 ports, VGA, and SAS3 support via Broadcom® 3008.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SSH-CTF
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
    Note
    • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C236
    SAS
    • LSI3008 controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
    SATA
    • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    • 3 USB 3 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x2 (in x4 slot)
    M.2
    • M.2 Interface: SATA; PCIe 3.0 x4
    • Form Factor: 2260
    • Key: M-Key
    System BIOS
    BIOS Type
    • 128MB SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • DMI 2.3
    • PCI 2.3
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    Management
    Software
    • SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL
    • Node Manager Support
    • CPU thermal trip support for processor protection
    • Control of power-on for recovery from AC power loss
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSH-CTF with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSH-CTF with EMI Gasket
    QRG
    MNL-1783-QRG1Motherboard Quick Reference Guide
