MBD-X11SSH-TF-SINGLE

MBD-X11SSH-TF-O

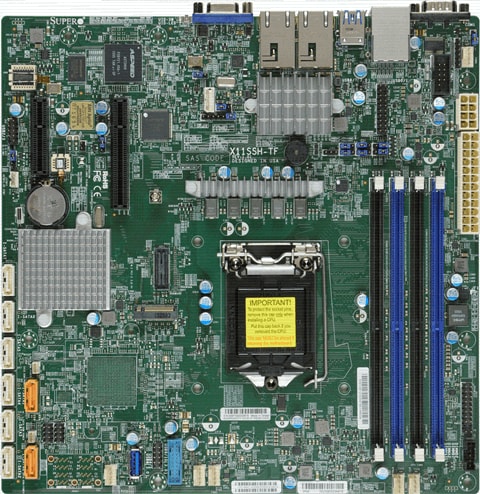

https://safeconsulting.no/web/image/product.template/10024/image_1920?unique=ba3907f

kr 4,574.70 4574.7 NOK kr 4,574.70

kr 4,574.70

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SSH-TF-O is a versatile Micro-ATX motherboard supporting Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 series, Celeron®, and Pentium® processors. It offers dual 10GBase-T LAN with Intel® X550 and has multiple expansion slots and connectivity options, making it ideal for various applications.

    Key Features

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots:1 PCIe 3.0 x8, 1 PCIe 3.0 x2 (in x4)
    • M.2 NGFF connectorM.2 Interface:SATA and PCIe 3.0 x4Form Factor: 2260Key: M-Key
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
    • Dual 10GBase-T LAN with Intel® X550
    • I/O: 1 VGA, 2 COM, TPM header
    • 2 SuperDOM with built-in power
    • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

    Key Applications

    • Servers
    • Workstations
    • High-performance computing
    • Network storage
    • Data centers

    Description

    The Supermicro MBD-X11SSH-TF-O motherboard is designed for diverse computing needs. Equipped with Intel® C236 chipset, it supports a range of processors including the Xeon® E3-1200 v6/v5 series, providing robust performance and reliability. It accommodates up to 64GB of memory across four DIMM slots and features numerous I/O options, including dual 10GBase-T LAN, multiple USB ports, SATA3 ports with RAID capabilities, and PCIe expansion slots. This motherboard is a highly adaptable solution for servers and workstations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SSH-TF
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
    Note
    • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C236
    SATA
    • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    • 3 USB 3 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x2 (in x4 slot)
    M.2
    • M.2 Interface: SATA; PCIe 3.0 x4
    • Form Factor: 2260
    • Key: M-Key
    System BIOS
    BIOS Type
    • 128MB SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • APM 1.2
    • DMI 2.3
    • PCI 2.3
    • Plug and Play (PnP)
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • UEFI 2.3.1
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL
    • Node Manager Support
    • CPU thermal trip support for processor protection
    • Control of power-on for recovery from AC power loss
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSH-TF with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSH-TF with EMI Gasket
    QRG
    MNL-1783-QRG1Motherboard Quick Reference Guide
