    Summary Description

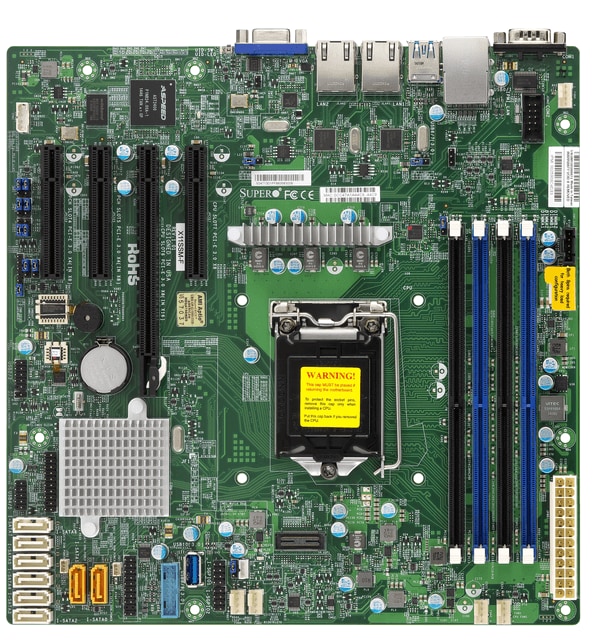

    Supermicro Motherboard MBD-X11SSM-F-B

    Product Highlights

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
      • Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots:
      • 1 PCIe 3.0 x8 (in x16),
      • 1 PCIe 3.0 x8,
      • 2 PCIe 3.0 x4 (in x8)
    • Dual GbE LAN with Intel® i210-AT
    • 8 SATA3 (6Gbps) via C236;
      • RAID 0, 1, 5, 10
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
    • I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header


    Supermicro Motherboard MBD-X11SSM-F-B

    Product Specifications

    Product SKUs:
    Physical Stats
    Form FactorMicro-ATX
    Dimension9.6" x 9.6" (24.38cm x 24.38cm)
    CPUIntel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP
    System Memory
    Memory Capacity4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MHz
    Memory Type2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes4GB, 8GB, 16GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C236
    SATAIntel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Graphics1 ASPEED AST2400 BMC port(s)
    Network ControllersDual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
    Video Output1 VGA port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x8 (in x16 slot),1 PCIe 3.0 x8,2 PCIe 3.0 x4 (in x8 slot)
    System BIOS
    BIOS Type128MB SPI Flash EEPROM with AMI BIOS
    BIOS FeaturesPlug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1
    SoftwareSuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LEDUID/Remote UIDCPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportThermal Monitor 2 (TM2) supportPECI
    FAN5x 4-pin fan headers (up to 5 fans)Thermal control tachometer fan connectorsFan speed controlOverheat LED indication
    Other FeaturesWOLNode Manager SupportCPU thermal trip support for processor protectionControl of power-on for recovery from AC power loss
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
