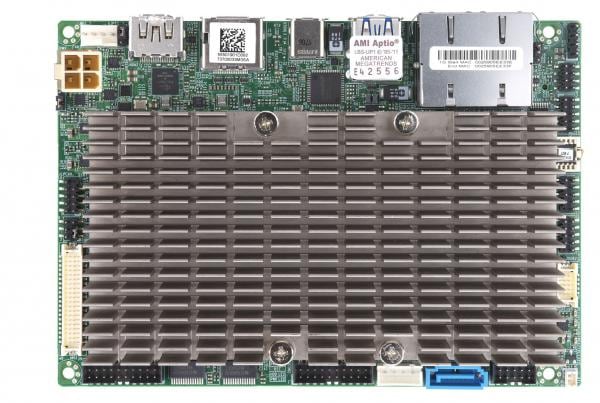

X11SSN-E-VDC,12VDC Vertical Power Connector,3.5"SBC,Core


kr 7,171.25 7171.25 NOK kr 7,171.25

kr 7,171.25

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X11SSN-E-VDC-B

    Product Highlights

    • 7th Generation Intel® Core™ i5-7300U Processor
    • Up to 32GB Unbuffered Non-ECC SO-DIMM
      • DDR4 2133MHz; 2 DIMM slots
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
    • 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
    • Dual GbE LAN w/ Intel i219LM + i210IT
    • 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
    • Supports on board TPM 2.0
    • Support HDMI 2.0
    • Support 12V DC Power Input (Vertical Type Connector)


    Supermicro Motherboard MBD-X11SSN-E-VDC-B

    Product Specifications

    Product SKUs:
    Physical Stats
    Form Factor3.5" SBC
    Dimension5.7" x 4" (14.6cm x 10.16cm)
    CPU7th Generation Intel® Core™ i5-7300U ProcessorSingle Socket FCBGA-1356 supported, CPU TDP supports Up to 15W TDP
    CoreUp to 2 cores, 4 threads / 3MB Cache
    System Memory
    Memory Capacity2 DIMM slotsUp to 32GB Unbuffered non-ECC SODIMM, DDR4-2133MHz
    Memory Typenon-ECC DDR4 SODIMM Unbuffered 2133 SDRAM 72-bit, 260-pin gold-plated
    DIMM Sizes4GB, 8GB, 16GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetSystem on Chip
    AudioALC 888S HD Audio
    Graphics1 Intel® HD Graphics port(s)
    Network ControllersSingle LAN with Intel® PHY I219LM LAN controllerSingle LAN with Intel® Ethernet Controller I210IT
    Input / Output
    SATA1 SATA3 (6Gbps) port(s)
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB1 USB 3.2 Gen2 port(s) (1 type C)4 USB 2.0 port(s) (4 via header)2 USB 3.0 port(s) (2 rear)
    Video Output1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)
    Serial Port4 COM Port(s) (4 header)
    TPM1 TPM Chip
    Others1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)1 8-bit GPIO header1 SMBus header1 System Fan1 Speaker header
    Expansion Slots
    PCIe1 x Full size Mini-PCIe with mSATA(USB2.0 x 1,PCIe Gen3 x 1,SATA Gen3 x 1)
    M.2M.2 Interface: SATA; USB 2.0; PCIe 3.0 x2Form Factor: 2280Key: B-Key
    System BIOS
    BIOS FeaturesACPI 6.1SMBIOS 3.1UEFI 2.6PCI FW 3.0
    SoftwareSuperDoctor® 5, AMT, vPro, Watchdog
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Force Power On by Jumper, +12V DC Power Input Vertical Type Connector
    PC Health Monitoring
    VoltageVBAT, System temperature, System level control, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V, Monitors for CPU Cores
    LEDStandby alert LED
    TemperatureCPU thermal trip support
    FAN1x 4-pin fan header (up to 1 fan)Thermal control tachometer fan connectorsSystem level controlPWM fan speed controlLow noise fan speed controlFan speed control
    Other FeaturesWOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v Vertical Type DC Power Connector
    Operating Environment
    Operating Temperature Range0°C - 70°C (32°F - 158°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
