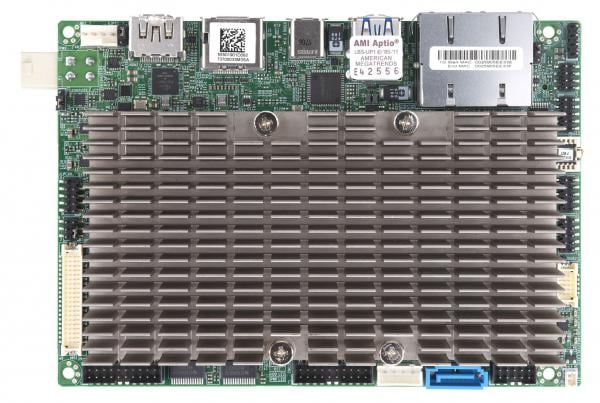

X11SSN-H,Emdedded 3.5" SBC,Intel Kaby Lake-U SoC,2 Core

• 7th Generation Intel® Core™ i7-7600U Processor
• Up to 32GB Unbuffered Non-ECC SO-DIMMDDR4 2133MHz; 2 DIMM slots
• 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
• 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
• Dual GbE LAN w/ Intel i219LM + i210IT
• 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
• Supports on board TPM 2.0
• Support 12V DC power input (R/A Type Connector)
• Support HDMI 2.0

• Embedded systems
• Industrial automation
• Digital signage
• Retail solutions
• Kiosks
• Network appliances

Ideal for a wide range of embedded applications, the Supermicro MBD-X11SSN-H-B motherboard delivers powerful performance with the 7th Gen Intel® Core™ i7-7600U Processor. It supports up to 32GB of non-ECC DDR4 memory through its dual DIMM slots. For connectivity, it offers dual GbE LAN, multiple USB ports (including USB 3.1 Gen2 Type-C and USB 3.0), and four COM ports. Video outputs include HDMI, DisplayPort, and LVDS, supporting Intel HD Graphics with three independent displays. Additional features include on-board TPM 2.0, support for various M.2 and Mini-PCIe storage options, and extensive I/O capabilities. This board is designed to perform reliably in various environmental conditions, making it suitable for many industrial and commercial applications.
