MBD-X11SSQ-L-SINGLE

MBD-X11SSQ-L-O
https://safeconsulting.no/web/image/product.template/10054/image_1920?unique=ba3907f

kr 1,868.00 1868.0 NOK kr 1,868.00

kr 1,868.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

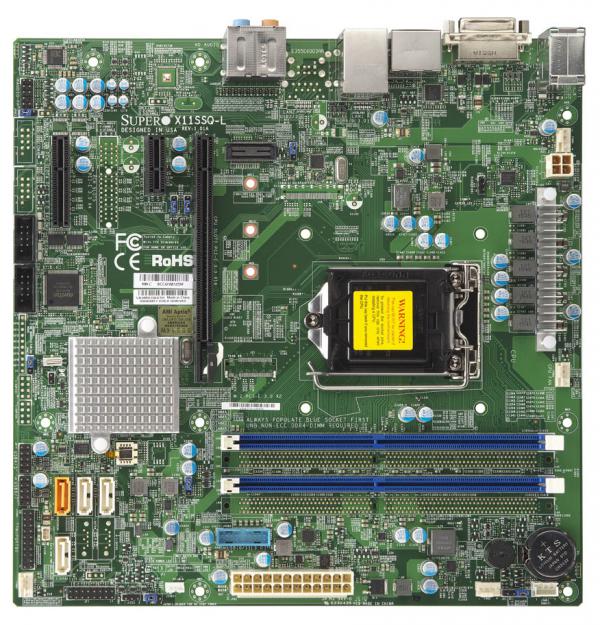

    The Supermicro MBD-X11SSQ-L-O is a Micro-ATX motherboard powered by the Intel® H110 chipset, supporting 7th and 6th Gen Intel® Core™ processors including Intel® i7/i5/i3, Pentium®, and Celeron® series. It supports up to 32GB Unbuffered Non-ECC DDR4 RAM across 2 DIMM slots. With advanced features like USB 3.0, HDMI, DP, DVI-D video outputs, and comprehensive expansion slots, this board is ideal for a variety of applications.

    Key Features

    • Single socket H4 (LGA 1151) supportsIntel® 7th/6th Gen. Core i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® H110 Chipset
    • Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2400MHz; 2 DIMM slots
    • Expansion slots: 1 PCIe 3.0 x16 1 PCIe 2.0 x4 w/ open slots 1 PCIe 2.0 x1
    • Intel® i219LM GbE LAN
    • 4 SATA3 (6Gbps) via H110, Intel® RST
    • HDMI, DP, DVI-D Intel HD Graphics 2 Independent Displays
    • 1 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio 7.1
    • 4 USB 3.0 (2 rear + 2 via header(s)) 6 USB 2.0 (2 rear + 4 via header(s))

    Key Applications

    • Workstations
    • Home PCs
    • Small servers
    • Media centers
    • Gaming PCs
    • Educational systems

    Description

    The Supermicro MBD-X11SSQ-L-O motherboard is designed for users seeking a compact yet powerful solution. It features the Intel® H110 chipset and supports 7th/6th Gen. Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors. With support for up to 32GB DDR4 RAM, multiple expansion slots, and a variety of USB and video output options, this motherboard is versatile and dependable. Key features include Intel® i219LM GbE LAN, four SATA 6Gbps ports via H110, dual independent displays with HDMI, DP, DVI-D ports, and enhanced audio with ALC 888S HD Audio 7.1. The board also includes advanced management features, robust power configurations, and comprehensive PC health monitoring.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SSQ-L
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series, Intel® Celeron®, Intel® Pentium®
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 91W TDP
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® H110
    SATA
    • Intel® H110 controller for 4 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    Input / Output
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    TPM
    • 1 TPM Header
    Others
    • 1 Force On mode by jumper and AC recovery
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16
    • 1 PCIe 2.0 x4
    • 1 PCIe 2.0 x1
    • PCIe 2.0 x4 with open slot
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • UEFI 2.3.1
    • ACPI 5.0
    • SMBIOS 3.0
    • PCI 3.0
    Management
    Software
    • SuperDoctor® 5, NMI, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Force Power On by Jumper, Keyboard Wakeup from Soft-Off
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • Standby alert LED
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    • I2C temperature sensing logic
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    • Overheat LED indication
    Other Features
    • WOL, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00063-1N1Standard I/O Shield for X11SSQ
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00063-1N1Standard I/O Shield for X11SSQ
    QRG
    MNL-1793-QRG1Quick Reference Guide for X11SSQ-L

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9655V-TPM Module with Infineon 9655, RoHS/REACH,PBF;
    AOM-TPM-9655H-Vertical or Horizontal
