MB -X11SSV-Q-BULK

Name: MB -X11SSV-Q-BULK
Brand: {brand}
SKU: MBD-X11SSV-Q-B
Price: 2631.49 NOK
Availability: BackOrder

SKU:

MBD-X11SSV-Q-B

kr 2,631.49 2631.4900000000002 NOK kr 2,631.49

kr 2,631.49

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

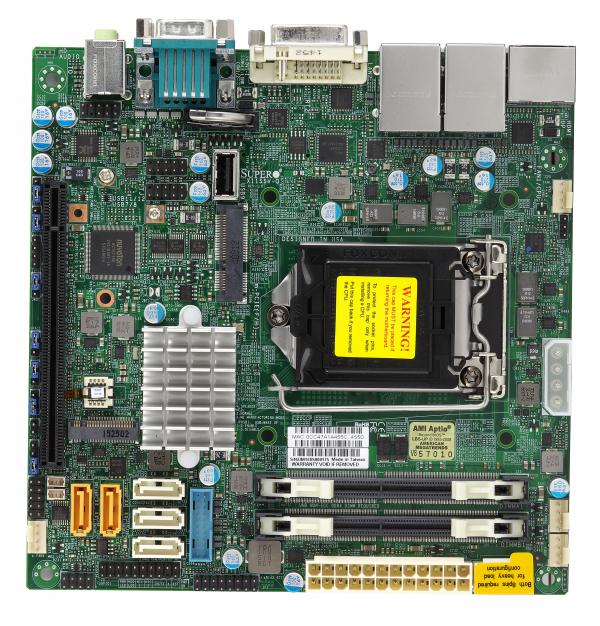

The Supermicro MBD-X11SSV-Q-B is a Mini-ITX motherboard designed to support Intel® 7th/6th Gen Core i7/i5/i3, Celeron, and Pentium processors. It features the Intel® Q170 Express chipset, support for up to 32GB DDR4 memory, dual GbE LAN, and various I/O options for versatile usage.

Key Features

Single socket H4 (LGA 1151) supportsIntel® 7th/6th Gen. Core i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
Intel® Q170 Express chipset
Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
1 PCIe 3.0 x16, Mini-PCIe (mSATA support)M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80
Dual GbE LAN w/ Intel i219LM + i210AT
5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
1 HDMI, 1 DP, 1 DVI-I, Intel HD Graphics3 independent displays
Supports 12V DC power input
AMT, vPro
2 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio

Key Applications

Small form factor PCs
Industrial control systems
Kiosk installations
Digital signage

Description

The Supermicro MBD-X11SSV-Q-B motherboard offers robust performance with support for Intel® 7th/6th Gen processors and the Intel® Q170 Express chipset. Designed in a compact Mini-ITX form factor, it is ideal for space-constrained setups. The board supports up to 32GB of DDR4 memory through 2 DIMM slots and provides numerous connectivity options including HDMI, DP, DVI-I, and multiple SATA3 ports with RAID support. Additional features include dual GbE LAN, 12V DC power input, AMT, vPro, and TPM header for enhanced security.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SSV-Q
Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU	Intel® 6th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors
System Memory
Memory Capacity	2 DIMM slots Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s
Memory Type	2400/2133/1866 MT/s non-ECC DDR4 SODIMM Unbuffered SDRAM 72-bit, 260-pin gold-plated
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® Q170 Express
SATA	Intel® Q170 Express controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel RST
Audio	ALC 888S HD Audio
Graphics	1 Intel® HD Graphics port(s) 3 Independent Displays
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
USB	5 USB 2.0 port(s) (4 via header; 1 Type A) 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
Video Output	1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - I port(s)
Serial Port	2 COM Port(s) (2 rear)
TPM	1 TPM Header
Others	1 SMBus header 1 SGPIO Header 1 GPIO
Expansion Slots
PCIe	1 PCIe 3.0 x16 Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, M Key
M.2	Form Factor: 2280, 2242
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 5.0 DMI 2.3 PCI 3.0 Plug and Play (PnP) SMBIOS 3.0 UEFI 2.3.1 USB Keyboard support
Management
Software	SuperDoctor® 5, NMI, AMT, vPro, Watchdog
System Management Software	SuperDoctor 5
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED	Standby alert LED CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	4x 4-pin fan headers (up to 4 fans) Thermal control tachometer fan connectors System level control PWM fan speed control Pulse Width Modulated (PWM) fan connectors
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Intel Smart Response Technology
Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00070-1N	1	Standard I/O Shield for X11SSV-Q
Retail Package
I/O Cables
CBL-0044L	4	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00070-1N	1	Standard I/O Shield for X11SSV-Q
QRG
MNL-1795-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
mSATA 128GB
SSD-DM128-SMCMVN1	-	Supermicro mSATA 128GB MLC
mSATA 64GB
SSD-DM064-PHI	-	Supermicro mSATA, half card, 64GB SSD
TPM security module
AOM-TPM-9655V	-	TPM Module with Infineon 9655, RoHS/REACH,PBF;
