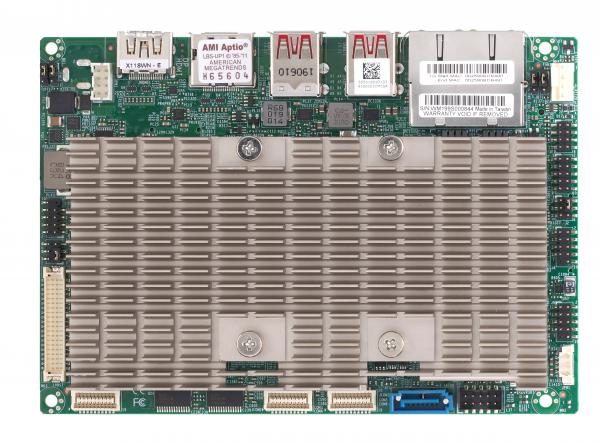

X11SWN-H,Emdedded 3.5"SBC,Intel Whiskey Lake-U SoC,i7-86

MBD-X11SWN-H-O
https://safeconsulting.no/web/image/product.template/10084/image_1920?unique=dec9d2d

kr 9,310.04 9310.04 NOK kr 9,310.04

kr 9,310.04

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X11SWN-H-O

    Product Highlights

    • Intel® 8th Generation Core™ i7-8665UE Processor
    • Dual Channel DDR4 2400MHz SO-DIMM, up to 64GB
    • Small form factor with rich I/O: 2 GbE, 8 USB and 6 COM
    • Intel UHD Graphics 620 with 4K and 24 EU for Vision Solution
    • 3 display support(DP++, HDMI and 48-bit LVDS)
    • Rich expansion: 3 x M.2 (B/E/M key) for NVMe/SATA/Wifi/BT/LTE
    • 12-24V wide range power input with RVP and TVS

    Description

    Supermicro Motherboard MBD-X11SWN-H-O

    Product Specifications

    Product SKUs:
    MBD-X11SWN-H
    Physical Stats
    Form Factor3.5" SBC
    Dimension5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU8th Generation Intel® Core™ i7-8665UE ProcessorSingle Socket FCBGA-1528 supported, CPU TDP supports Up to 15W TDP
    CoreUp to 4 cores, 8 threads / 8MB Cache
    System Memory
    Memory Capacity2 DIMM slotsUp to 64GB Unbuffered non-ECC SODIMM, DDR4-2400MHz
    Memory Type2666/2400/2133 MT/s non-ECC DDR4 Unbuffered 2400MHz 260pin SODIMM
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetSystem on Chip
    AudioALC 888S HD Audio
    Graphics1 Intel® UHD Graphics 620 port(s)Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), _x000D_ HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
    Network ControllersSingle LAN with Intel® PHY I219LM LAN controllerSingle LAN with Intel® Ethernet Controller I210IT
    SATAI-SATA0 (1x SATA 3.0 Port)
    Input / Output
    SATA1 SATA3 (6Gbps) port(s)
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB4 USB 2.0 port(s) (4 via header)4 USB 3.1 Gen2 port(s) (4 rear type A)
    Video Output1 HDMI port(s), 1 48-bit LVDS port(s), 1 DP++(Dual-Mode DisplayPort) port(s)
    Serial Port6 COM Port(s) (6 header), (4 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
    TPM1 TPM Chip
    Others1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)1 8-bit GPIO header1 SMBus header1 System Fan
    Expansion Slots
    PCIeN/A
    M.2Key: B-Key, M-Key, E-KeyM.2 2242/3042/2280 B-Key (USB3.0/2.0 x 1,SATA Gen3 x 1) with nano SIM holder;M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2);M.2 2242/2280 M-Key (PCIe 3.0 x4,SATA Gen3 x 1), NVMe support
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.2SMBIOS 3.0 or laterUEFI 2.7PCI FW 3.0
    Management
    SoftwareSuperDoctor® 5, AMT, vPro, Watchdog
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    VoltageVBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
    LEDStandby alert LED
    TemperatureCPU thermal trip support
    FAN1x 4-pin fan header (up to 1 fan)Thermal control tachometer fan connectorsSystem level controlPWM fan speed controlLow noise fan speed controlFan speed control
    Other FeaturesWOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
