  2. X11SWN-L, Emdedded 3.5" SBC, Intel Whiskey Lake-U SoC

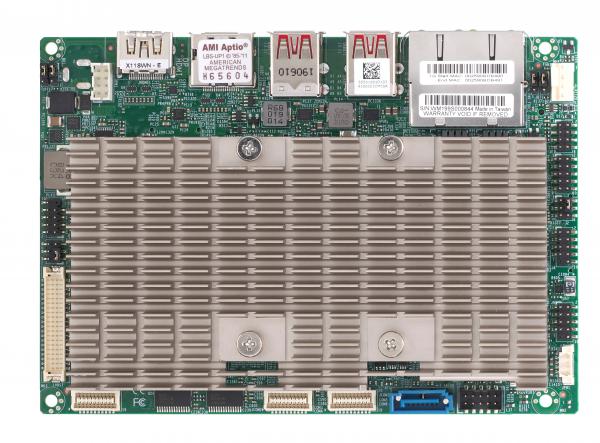

X11SWN-L, Emdedded 3.5" SBC, Intel Whiskey Lake-U SoC

MBD-X11SWN-L-O
https://safeconsulting.no/web/image/product.template/10087/image_1920?unique=ba3907f

kr 4,905.10 4905.1 NOK kr 4,905.10

kr 4,905.10

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SWN-L motherboard is designed for advanced computing applications. It features the Intel 8th Generation Core i3-8145UE Processor, dual-channel DDR4 support up to 64GB, and a small form factor with extensive I/O including 2 GbE, 8 USB ports, and 6 COM ports. The onboard Intel UHD Graphics 620 supports up to 3 displays, making it ideal for multiple monitor setups.

    Key Features

    • Intel® 8th Generation Core™ i3-8145UE Processor
    • Dual Channel DDR4 2400MHz SO-DIMM, up to 64GB
    • Small form factor with rich I/O: 2 GbE, 8 USB and 6 COM
    • Intel UHD Graphics 620 with 4K and 24 EU for Vision Solution
    • 3 display support(DP++, HDMI and 48-bit LVDS)
    • Rich expansion: 3 x M.2 (B/E/M key) for NVMe/SATA/Wifi/BT/LTE
    • 12-24V wide range power input with RVP and TVS

    Key Applications

    • Embedded systems
    • Industrial control
    • Digital signage
    • Point of Sale
    • Kiosk systems
    • Gaming machines

    Description

    Designed for high-performance computing, the Supermicro MBD-X11SWN-L motherboard integrates the Intel 8th Generation Core i3-8145UE Processor. It supports dual-channel DDR4 2400MHz SO-DIMM, with a maximum capacity of 64GB. The compact 3.5" SBC form factor is complemented by a variety of input/output options, including 2 GbE ports, 8 USB ports, and 6 COM ports. The Intel UHD Graphics 620 ensures sharp visuals with support for 3 displays through DP++, HDMI, and LVDS. Expansion needs are met with 3 M.2 slots (B/E/M key) for NVMe/SATA/Wifi/BT/LTE and a 12-24V wide range power input with robust protections.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SWN-L
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • 8th Generation Intel® Core™ i3-8145UE Processor
    • Single Socket FCBGA-1528 supported, CPU TDP supports Up to 15W TDP
    Core
    • Up to 2 cores, 4 threads / 4MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s
    Memory Type
    • 2666/2400/2133 MT/s non-ECC DDR4 Unbuffered 2400MHz 260pin SODIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® UHD Graphics 620 port(s)
    • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), _x000D_ HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210IT
    SATA
    • I-SATA0 (1x SATA 3.0 Port)
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 4 USB 3.1 Gen2 port(s) (4 rear type A)
    Video Output
    • 1 HDMI port(s), 1 48-bit LVDS port(s), 1 DP++(Dual-Mode DisplayPort) port(s)
    Serial Port
    • 6 COM Port(s) (6 header), (4 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
    TPM
    • 1 TPM Chip
    Others
    • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    Expansion Slots
    PCIe
    • No/A
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (USB3.0/2.0 x 1,SATA Gen3 x 1) with nano SIM holder;M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2);M.2 2242/2280 M-Key (PCIe 3.0 x4,SATA Gen3 x 1), NVMe support
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.2
    • SMBIOS 3.0 or later
    • UEFI 2.7
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0126PL1X11SWN-L passive heatsink with height 18.7mm
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06651COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0126PL1X11SWN-L passive heatsink with height 18.7mm
    QRG
    MNL-2217-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-00008-0N1Aluminum block Heatspreader for X11SWN
    IO shield
    MCP-260-10204-0B1CSE-E102 I/O shield for X11SWN
    Power Adapter
    MCP-250-10117-0N160W 12V 5A, AC to DC lockable power adapter,HF
    SATA Power Cable
    CBL-PWEX-10321SATA Power Cable 20cm
