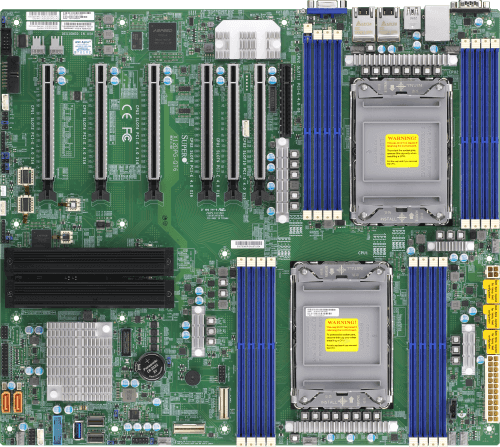

X12DPG-QT6 GPU workstation with BMC AST2600

MBD-X12DPG-QT6-B
https://safeconsulting.no/web/image/product.template/9758/image_1920?unique=5a19258

kr 12,732.92 12732.92 NOK kr 12,732.92

kr 12,732.92

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12DPG-QT6-B motherboard is designed to support dual socket LGA-4189 and 3rd Gen Intel® Xeon® Scalable processors with up to 40 cores and 270W TDP. This advanced motherboard includes 6 PCIe 4.0 x16 slots, dual LAN with Intel® X550 10GBase-T, and up to 4TB 3DS ECC RDIMM, DDR4-3200MHz.

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
    • Intel® C621A
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
    • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHzUp to 6TB Intel® Optane™ Persistent Memory 200 Series, in 16 DIMM slots;Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.
    • 6 PCIe 4.0 x16,1 PCIe 4.0 x8M.2 Interface:2 PCIe 4.0 x4, RAID 0 & 1M.2 Form Factor:2242/2260/2280/22110M.2 Key:M-Key
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 5 USB 3.0 ports, 4 USB 2.0 ports
    • HD Audio with optical S/PDIF

    Key Applications

    • High-performance computing (HPC)
    • Data centers
    • Enterprise servers
    • AI and machine learning
    • Virtualization
    • Big data analytics

    Description

    The Supermicro MBD-X12DPG-QT6-B motherboard is a high-performance computing solution that supports dual socket LGA-4189 for 3rd Gen Intel® Xeon® Scalable processors. It features the Intel® C621A chipset, supports up to 6TB Intel® Optane™ Persistent Memory 200 Series, and includes advanced management features like IPMI 2.0, KVM with dedicated LAN, and SuperDoctor® 5. With up to 6 PCIe 4.0 x16 slots, dual LAN, and comprehensive I/O options, this motherboard is ideal for data-intensive applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12DPG-QT6
    Physical Stats
    Form Factor
    • Proprietary
    Dimension
    • 15.12" x 13.2" (38.43cm x 33.53cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
    Core
    • Up to 40 cores
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 6TB Intel® Optane™ Persistent Memory 200 Series
    • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s
    • Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.
    Memory Type
    • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • 16GB, 32GB, 64GB, 128GB, 256GB
    • LRDIMM: 128GB, 256GB
    • RDIMM: 64GB, 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Audio
    • 7.1 HD Audio Header
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 7 USB 3.1 Gen1 port(s) (2 via header; 4 rear type A; 1 rear type C)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x8,
    • 6 PCIe 4.0 x16
    M.2
    • M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1
    • Form Factor: 2242/2260/2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 5+1 Phase-switching voltage regulator, 10 -fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    FAN
    • 10x 4-pin fan headers (up to 10 fans)
    • Status monitoring for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Other Features
    • RoHS
    • Node Manager Support
    • CPU thermal trip support for processor protection
    • Chassis intrusion detection
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1205L-P4IC-FXC2CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Shield
    MCP-260-00150-0N1X12DPG-QT6 I/O SHIELD
    SATA Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
