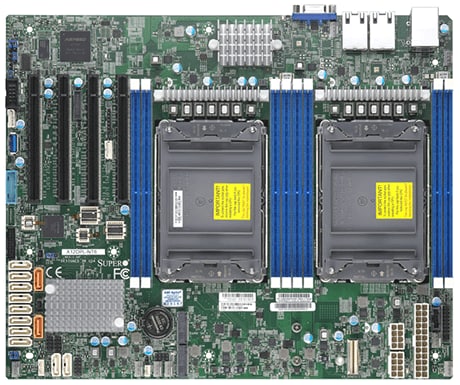

X12DPL-NT ICX mainstream DP MB with Intel X550, AST2600

MBD-X12DPL-NT6-B
https://safeconsulting.no/web/image/product.template/9766/image_1920?unique=5a19258

kr 8,386.95 8386.95 NOK kr 8,386.95

kr 8,386.95

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12DPL-NT6-B ATX motherboard is designed for high-performance computing, equipped with dual Intel Xeon Scalable processors support, Intel C621A chipset, and up to 2TB DDR4 memory. It features extensive I/O options, including PCIe 4.0 slots, USB 3.2 ports, dual 10GBase-T LAN ports, 12 SATA3 ports with RAID support, and additional manageability features.

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
    • Intel® C621A
    • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
    • 4 PCIe 4.0 x16,1 PCIe 4.0 NVMe x8 Internal Port(s)M.2 Interface:2 PCIe 4.0 x4M.2 Form Factor:2280/22110, 2280M.2 Key:M-Key
    • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • 1 VGA port

    Key Applications

    • High-performance computing
    • Data centers
    • Server virtualization
    • Cloud computing
    • Enterprise applications

    Description

    The Supermicro MBD-X12DPL-NT6-B is a high-performance ATX motherboard, supporting dual 3rd Gen Intel Xeon Scalable processors with up to 185W TDP and 2 UPI up to 11.2 GT/s. It integrates Intel C621A chipset and supports up to 2TB DDR4 ECC RDIMM or LRDIMM across 8 DIMM slots. The board includes 4 PCIe 4.0 x16 slots, dual 10GBase-T LAN ports, 12 SATA3 ports with RAID support, and is managed with ASPEED AST2600 BMC. The Supermicro Server Manager, Redfish API, and various other management tools ensure seamless operation and monitoring.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12DPL-NT6
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12.23" x 10" (31.06cm x 25.4cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s
    Memory Type
    • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
    DIMM Sizes
    • 256GB
    • LRDIMM: 256GB
    • RDIMM: 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    LAN
    • 2 RJ45 10 Gigabit Ethernet LAN ports
    USB
    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 4 PCIe 4.0 x16
    M.2
    • M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4
    • Form Factor: 2280/22110, 2280
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
    Power Configurations
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
    LED
    • UID/Remote UID
    • BMC/IPMI Heartbeat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    • Overheat LED indication
    Other Features
    • UID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1205L-P4IC-FXC2CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00156-0N1I/O Shield for X12DPL-i6/NT6 with EMI Gasket
    Retail Package
    CPU carrier
    SKT-1205L-P4IC-FXC2CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00156-0N1I/O Shield for X12DPL-i6/NT6 with EMI Gasket

    Optional Part List

    Part Number Quantity Description
    I/O Shield
    MCP-260-00157-0N11U I/O Shield for X12DPL with EMI Gasket,RoHS
