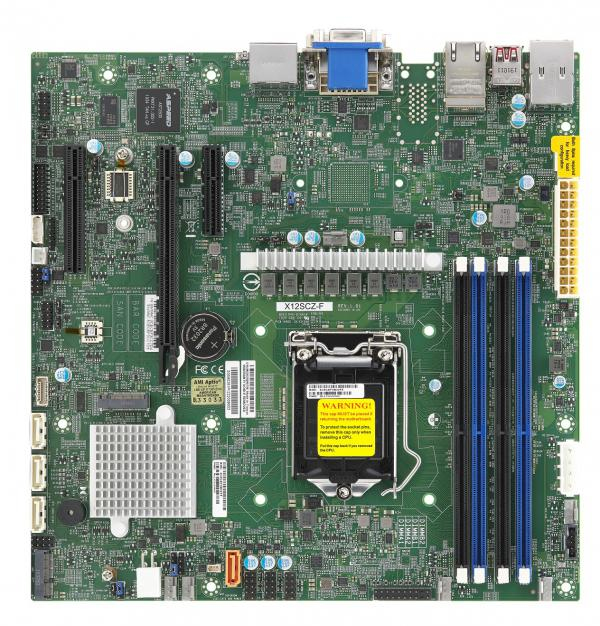

X12SCZ-F,Micro ATX,Comet Lake PCH W480,LGA1200,1 PCIE x1

MBD-X12SCZ-F-O
https://safeconsulting.no/web/image/product.template/9781/image_1920?unique=3365fe2

kr 4,822.77 4822.77 NOK kr 4,822.77

kr 4,822.77

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro MBD-X12SCZ-F. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: Serial ATA III, SATA III, RAID levels: 0, 1, 5, 10. LAN controller: Intel® I210-AT, Intel® I219-LM. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

    Product Highlights

    • Intel LGA 1200 (Socket H5) Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Xeon®
    • PC micro ATX Intel W480 Realtek ALC888S
    • DDR4-SDRAM 4 DIMM ECC Non-ECC Maximum internal memory: 128 GB
    • Serial ATA III, SATA III RAID support
    • BIOS type: UEFI AMI ACPI version: 6.1

    Description

    Supermicro MBD-X12SCZ-F. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: Serial ATA III, SATA III, RAID levels: 0, 1, 5, 10. LAN controller: Intel® I210-AT, Intel® I219-LM. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

    Product Specifications

    Supermicro MBD-X12SCZ-F Intel W480 LGA 1200 (Socket H5) micro ATX

    Processor

    Specification Details
    Processor manufacturer Intel
    Processor socket LGA 1200 (Socket H5)
    Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Xeon®
    Processor number of cores supported 10

    Memory

    Specification Details
    Supported memory types DDR4-SDRAM
    Number of memory slots 4
    Memory slots type DIMM
    Memory voltage 1.2 V
    ECC Yes
    Non-ECC Yes
    Supported memory clock speeds 2133,2400,2666,2933 MHz
    Maximum internal memory 128 GB
    Supported memory module capacities 4GB, 8GB, 16GB, 32GB

    Storage controllers

    Specification Details
    Supported storage drive interfaces Serial ATA III, SATA III
    RAID support Yes
    RAID levels 0, 1, 5, 10

    Internal I/O

    Specification Details
    USB 2.0 connectors 6
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 2
    Number of SATA III connectors 4
    ATX Power connector (24-pin) Yes
    Number of COM connectors 2
    TPM connector Yes

    Rear panel I/O ports

    Specification Details
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
    Ethernet LAN (RJ-45) ports 2
    VGA (D-Sub) ports quantity 1
    DVI-D ports quantity 1
    DisplayPorts quantity 2

    Network

    Specification Details
    Ethernet LAN Yes
    LAN controller Intel® I210-AT, Intel® I219-LM

    Features

    Specification Details
    Motherboard chipset Intel W480
    Audio chip Realtek ALC888S
    Component for PC
    Motherboard form factor micro ATX
    Motherboard chipset family Intel

    Expansion slots

    Specification Details
    PCI Express x16 (Gen 3.x) slots 1

    BIOS

    Specification Details
    BIOS type UEFI AMI
    ACPI version 6.1
    System Management BIOS (SMBIOS) version 3.1

    Operational conditions

    Specification Details
    Storage temperature (T-T) -40 - 85 °C
    Operating temperature (T-T) 0 - 60 °C
    Operating relative humidity (H-H) 10 - 85%
    Storage relative humidity (H-H) 5 - 95%

    Logistics data

    Specification Details
    Harmonized System (HS) code 84733020

    Weight & dimensions

    Specification Details
    Width 243.8 mm
    Depth 243.8 mm

    Other features

    Specification Details
    PCI Express x4 (Gen 3.x) slots 2
    Number of DIMM slots 4
    Number of processors supported 1
