    Summary Description

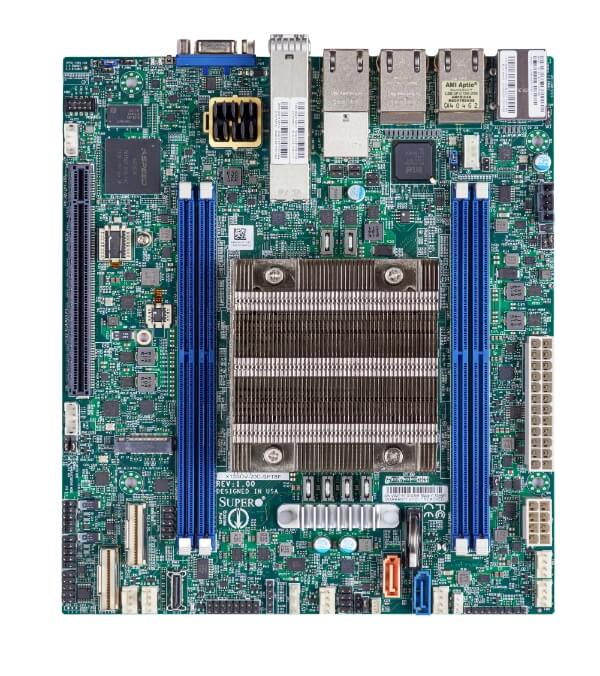

    The Supermicro X12SDV-16C-SPT8F motherboard offers robust performance with an Intel Xeon D-2775TE processor, support for up to 512GB of DDR4 memory, and versatile expansion and connectivity options. Ideal for demanding applications and enterprise use.

    Key Features

    • System on Chip
    • Intel® Xeon® Processor D-2775TE, CPU TDP 100W
    • Up to 256GB Registered ECC RDIMM, DDR4-2933MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2933MHz, in 4 DIMM slots
    • 1 PCIe 4.0 x16
    • 2 PCIe 4.0 NVMe x8 SlimSAS Internal Port
    • 1 OCuLink Connector (4 SATA/PCIe 3.0 x4)1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
    • Quad 1G RJ45 with Intel® I350-AM4Dual 25G SFP28 with Intel SoCDual 10Gbase-T RJ-45 with Intel® Ethernet Controller X550-AT2
    • SoC controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
    • 12V DC or ATX Power Input (Use at least 5Vsb/4A PSU)


    The Supermicro X12SDV-16C-SPT8F motherboard is designed to meet the demanding requirements of enterprise and data center environments. Featuring the Intel Xeon Processor D-2775TE with 16 cores and 25MB cache, it supports up to 512GB of ECC DDR4 memory across four DIMM slots. With multiple PCIe slots, quad 1G LAN ports, dual 25G SFP28 ports, and dual 10GBase-T ports, this motherboard ensures optimal connectivity and performance. Integrated IPMI and extensive management tools provide comprehensive control over system operations.

    Product Specifications

    Product SKUs
    Physical Stats
    Form FactorMicro-ATX
    Dimension7.5" x 8.5" (19.05cm x 21.59cm)
    CPUIntel® Xeon® Processor D-2775TE
    Single Socket FCBGA-2579 supported, CPU TDP supports Up to 100W TDP
    CoreUp to 16 cores / 25MB Cache
    System Memory
    Memory Capacity4 DIMM slots
    Up to 512GB ECC LRDIMM, DDR4-2933MT/s; Up to 256GB ECC RDIMM, DDR4-2933MT/s; Up to 512GB ECC/non-ECC , DDR4-2933MT/s
    Memory Type2933/2666/2400 MT/s ECC/non-ECC DDR4 LRDIMM, RDIMM
    DIMM SizesLRDIMM: 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
    UDIMM: 4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    SATASoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
    Graphics1 Aspeed AST2600 BMC port(s)
    Network ControllersDual LAN with 25G SFP28 LAN via SoC
    Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Quad LAN with Intel® i350 Gigabit Ethernet Controller
    Input / Output
    SATA2 SATA3 (6Gbps) port(s)
    LAN4 RJ45 Gigabit Ethernet LAN ports
    2 SFP28 25 Gigabit Ethernet LAN ports
    2 RJ45 10GBase-T ports
    USB4 USB 2 port(s) (4 via header)
    2 USB 3 port(s) (2 rear type A)
    Video Output1 VGA D-Sub Connector port(s)
    Serial Port1 COM Port(s) (1 header)
    DOM1 SATADOM(Disk on Module) power connector support
    TPM1 TPM Header & Chip both
    Expansion Slots
    PCIe1 PCIe 4.0 x16,
    1 PCIe 3.0 x4 (or 4x SATA), via Oculink,
    2 PCIe 4.0 x8, via SlimSAS
    M.2M.2 Interface: 1 SATA/PCIe 3.0 x4
    Form Factor: 2242/2280
    Key: M-Key
    System BIOS
    BIOS FeaturesACPI 6.3
    UEFI 2.7
    SMBIOS 3.3
    Plug and Play (PnP)
    PCI FW 3.0
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power ConfigurationsATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages
    LEDUID/Remote UID
    BMC/IPMI Heartbeat LED
    Overheat/Fan Fail/PWR Fail LED
    Power Indicator LED
    LAN temperature
    TemperatureCPU thermal trip support
    peripheral temperature
    System temperature
    Memory temperature
    NVMe temperature
    Platform Environment Control Interface (PECI)/TSI
    FAN6x 4-pin fan headers (up to 6 fans)
    System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Overheat LED indication, Dual Cooling Zones
    Other FeaturesUID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00098-0N1Standard I/O Shield
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    COM Cable
    Part NumberQuantityDescription
    CBL-CDAT-06051COM Cable 20cm
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00098-0N1Standard I/O Shield
    OCuLink to 4x SATA Cable
    Part NumberQuantityDescription
    CBL-SAST-0933150CM OCuLink to 4x SATA Cable
    OCuLink to U.2 Cable
    Part NumberQuantityDescription
    CBL-SAST-0956155CM OCuLink to U.2 Cable with Molex Power Header
    Part NumberQuantityDescription
    MNL-2440-QRG1Motherboard Quick Reference Guide
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L257.5CM SATA FLAT S-S PBF
