  2. Coopere Lake/Ice Lake(LGA-4189)SKT-P+ +C621A,8xDDR4 3200

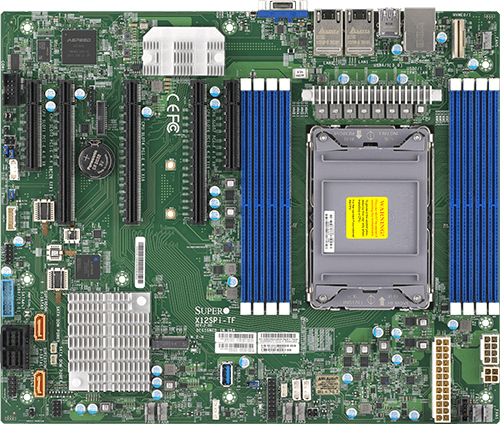

Coopere Lake/Ice Lake(LGA-4189)SKT-P+ +C621A,8xDDR4 3200

MBD-X12SPI-TF-B
https://safeconsulting.no/web/image/product.template/9814/image_1920?unique=5a19258

kr 6,671.44 6671.4400000000005 NOK kr 6,671.44

kr 6,671.44

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12SPI-TF-B is an advanced ATX motherboard designed for high-performance computing. It supports single socket LGA-4189 for 3rd Gen Intel Xeon Scalable processors with up to 40 cores and 2TB of memory.

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
    • Intel® C621A
    • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHzUp to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
    • 2 PCIe 4.0 x16,2 PCIe 4.0 x8,1 PCIe 4.0 x8 (in x16 slot),1 PCIe 4.0 NVMe x8 Internal Port(s)M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 10GBase-T with Intel® X550

    Key Applications

    • Enterprise Servers
    • Data Centers
    • High-Performance Computing
    • Virtualization

    Description

    The Supermicro MBD-X12SPI-TF-B motherboard is tailored for enterprise-level applications. It features the Intel C621A chipset, supports up to 2TB DDR4-3200MHz memory, and up to 2TB Intel Optane Persistent Memory 200 Series. With multiple PCIe 4.0 slots, advanced network controllers, and comprehensive system management options, this motherboard is optimized for performance and reliability.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SPI-TF
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12.1" x 10" (30.73cm x 25.4cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
    Core
    • Up to 40 cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
    • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
    Memory Type
    • ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    • LRDIMM: 64GB, 128GB
    • RDIMM: 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with 10GBase-T with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 10 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 4.0 x16,
    • 1 PCIe 4.0 x8 (in x16 slot),
    • 2 PCIe 4.0 x8
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.2
    • SMBIOS 3.0 or later
    • UEFI 2.7
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
    LED
    • UID/Remote UID
    • BMC/IPMI Heartbeat LED
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • Overheat LED indication
    Other Features
    • UID, RoHS, Dual Cooling Zones, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-1N1-
    Retail Package
    CPU carrier
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-1N1-
    QRG
    MNL-2225-QRG1-

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
