Coopere Lake/Ice Lake(LGA-4189)SKT-P+ +C621A,8xDDR4 3200

Name: Coopere Lake/Ice Lake(LGA-4189)SKT-P+ +C621A,8xDDR4 3200
Brand: supermicro
SKU: MBD-X12SPI-TF-O
Price: 6734.98 NOK
Availability: OutOfStock

SKU:

MBD-X12SPI-TF-O

kr 6,734.98 6734.9800000000005 NOK kr 6,734.98

kr 6,734.98

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

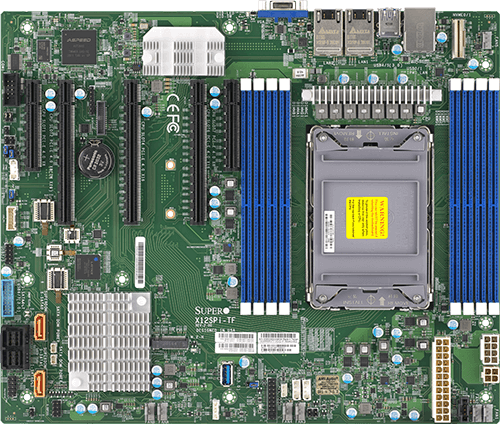

The Supermicro MBD-X12SPI-TF-O is a high-performance ATX motherboard designed to support 3rd Gen Intel Xeon Scalable processors. It features dual 10GBase-T LAN, extensive memory support up to 2TB, and multiple PCIe and M.2 slots for expandability.

Key Features

3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHzUp to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
2 PCIe 4.0 x16,2 PCIe 4.0 x8,1 PCIe 4.0 x8 (in x16 slot),1 PCIe 4.0 NVMe x8 Internal Port(s)M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel® X550

Key Applications

Enterprise servers
Data centers
Cloud computing
Virtualization environments
High-performance computing

Description

The Supermicro MBD-X12SPI-TF-O is a robust ATX motherboard engineered for demanding applications. Featuring the Intel C621A chipset, it supports 3rd Gen Intel Xeon Scalable processors in a single LGA-4189 socket with up to 270W TDP. The board accommodates up to 2TB of DDR4 memory including Intel Optane Persistent Memory 200 Series across 8 DIMM slots. For high-speed networking, it includes dual 10GBase-T LAN with Intel X550. The MBD-X12SPI-TF-O offers multiple I/O options including 4 USB 2.0 ports, 5 USB 3.2 Gen1 ports, a VGA D-Sub, and more. Storage is supported by 10 SATA3 ports with RAID 0,1,5,10 configurations.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X12SPI-TF
Physical Stats
Form Factor	ATX
Dimension	12.1" x 10" (30.73cm x 25.4cm)
Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores
System Memory
Memory Capacity	8 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type	ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB LRDIMM: 64GB, 128GB RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C621A
SATA	Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with 10GBase-T with Intel® X550
Input / Output
LAN	2 RJ45 10 Gigabit Ethernet LAN ports
USB	4 USB 2.0 port(s) (2 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SATADOM(Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	2 PCIe 4.0 x16, 1 PCIe 4.0 x8 (in x16 slot), 2 PCIe 4.0 x8
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7
Management
Software	Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED	UID/Remote UID BMC/IPMI Heartbeat LED Suspend static indicator LED CPU / System Overheat LED
Temperature	CPU thermal trip support PECI
FAN	7x 4-pin fan headers (up to 7 fans) System level control PWM fan speed control Fan speed control Overheat LED indication
Other Features	UID, RoHS, Dual Cooling Zones, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
CPU carrier
SKT-1205L-P4IC-FXC	1	CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-1N	1	-
Retail Package
CPU carrier
SKT-1205L-P4IC-FXC	1	CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-1N	1	-
QRG
MNL-2225-QRG	1	-

Optional Part List

Part Number	Quantity	Description
TPM security module
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	1	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
