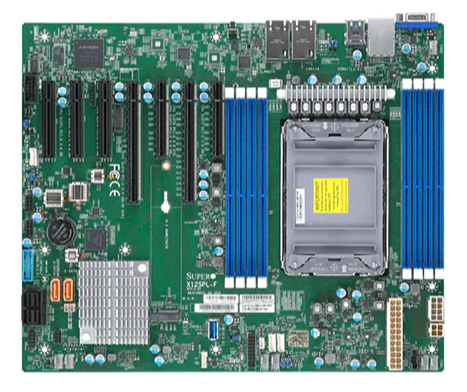

X12SPL-F,ATX,LGA-4189 SKT-P+,Intel C621A,8x DDR4 3200MHz

MBD-X12SPL-F-O
https://safeconsulting.no/web/image/product.template/8818/image_1920?unique=f719097

kr 6,108.84 6108.84 NOK kr 6,108.84

kr 6,108.84

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro MBD-X12SPL-F-O. Processor manufacturer: Intel, Processor socket: LGA 3647 (Socket P), Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: ASPEED. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
    • Intel® C621A
    • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHzUp to 2TB Intel® Optane™ Persistent Memory, in 8 DIMM slots
    • 2 PCIe 4.0 x8,1 PCIe 4.0 x16,1 PCIe 4.0 x8 (in x16 slot)3 PCIe 3.0 x8M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with Intel® i210 Gigabit Ethernet Controller

    Description

    The Supermicro MBD-X12SPL-F-O is a high-performance ATX motherboard designed to support 3rd Gen Intel® Xeon® Scalable processors. It features a single socket Socket P+ (LGA-4189) and supports up to 270W TDP. With up to 2TB of DDR4 ECC memory, the board offers 8 DIMM slots that can accommodate Intel® Optane™ Persistent Memory. The motherboard includes various expansion slots such as PCIe 4.0 and PCIe 3.0, and it supports numerous storage interfaces including M.2 and SATA3. The Intel® C621A chipset ensures robust performance and reliability, while the dual LAN with Intel® i210 Gigabit Ethernet controllers provide fast and stable network connectivity. Essential management features such as IPMI 2.0 and a host of Supermicro’s management software like Redfish API and SuperDoctor® 5 offer seamless monitoring and control. Security is robust with TPM 2.0 support, and the comprehensive health monitoring features ensure system longevity and stability. This motherboard is ideal for data centers, enterprise servers, and high-performance computing environments.

    Product Specifications

    Product SKUs
    MBD-X12SPL-F
    Physical Stats
    Form FactorATX
    Dimension12.1" x 10" (30.73cm x 25.4cm)
    Processor
    CPU3rd Gen Intel® Xeon® Scalable processors
    Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
    CoreUp to 40 cores
    System Memory
    Memory Capacity8 DIMM slots
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
    Memory Type3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C621A
    SATAIntel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 ASPEED AST2600 BMC port(s)
    Network ControllersDual LAN with Intel® i210 Gigabit Ethernet Controller
    Input / Output
    SATA10 SATA3 (6Gbps) port(s)
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output1 VGA port(s)
    Serial Port1 COM Port(s) (1 header)
    DOM2 SATADOM(Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 4.0 x16,
    1 PCIe 4.0 x8 (in x16 slot),
    2 PCIe 4.0 x8,
    3 PCIe 3.0 x8
    M.2M.2 Interface: 1 SATA/PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.2
    SMBIOS 3.0 or later
    UEFI 2.7
    Management
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
    LEDUID/Remote UID
    Suspend static indicator LED
    CPU / System Overheat LED
    TemperatureCPU thermal trip support
    PECI
    FAN7x 4-pin fan headers (up to 7 fans)
    System level control
    PWM fan speed control
    Fan speed control
    Overheat LED indication
    Other FeaturesWOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    CPU carrier
    Part NumberQuantityDescription
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00130-0N1STD I/O Shield for X12SPL-F with EMI Gasket
    Retail Package
    CPU carrier
    Part NumberQuantityDescription
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00130-0N1STD I/O Shield for X12SPL-F with EMI Gasket
    QRG
    Part NumberQuantityDescription
    MNL-2270-QRG1Motherboard Quick Reference Guide

    Optional Part List

    1U I/O Shield
    Part NumberQuantityDescription
    MCP-260-00131-0N11U I/O Shield for X12SPL-F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113)
    MCP-260-00132-0B11U I/O Shield for X12SPL-F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505)
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
