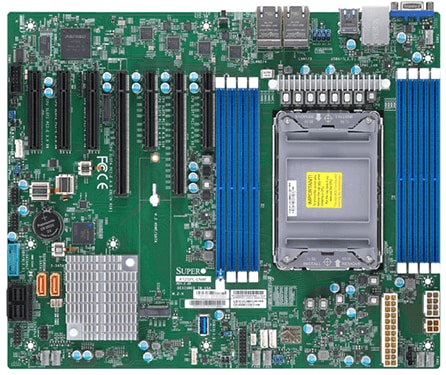

X12SPL-LN4F,ATX,LGA-4189 SKT-P+,Intel C621A,8x DDR4 3200

Name: X12SPL-LN4F,ATX,LGA-4189 SKT-P+,Intel C621A,8x DDR4 3200
Brand: supermicro
SKU: MBD-X12SPL-LN4F-O
Price: 5769.21 NOK
Availability: BackOrder

SKU:

MBD-X12SPL-LN4F-O

kr 5,769.21 5769.21 NOK kr 5,769.21

kr 5,769.21

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X12SPL-LN4F-O motherboard supports 3rd Gen Intel Xeon Scalable processors with up to 2TB of DDR4 memory and multiple PCIe 4.0 expansion slots. Designed for high performance and reliability, it features quad LAN ports and extensive storage options.

Key Features

3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHzUp to 2TB Intel® Optane™ Persistent Memory, in 8 DIMM slots
2 PCIe 4.0 x8,1 PCIe 4.0 x16,1 PCIe 4.0 x8 (in x16 slot)3 PCIe 3.0 x8M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Quad LAN with Intel® i210 Gigabit Ethernet Controller

Key Applications

High-Performance Computing
Data Centers
Enterprise Servers
Storage Solutions

Description

The Supermicro MBD-X12SPL-LN4F-O motherboard is engineered for optimal performance and reliability. Supporting 3rd Gen Intel Xeon Scalable processors, it features a single Socket LGA-4189 and supports CPU TDP up to 270W. With eight DIMM slots, this motherboard provides support for up to 2TB of DDR4-3200MHz memory, including 3DS ECC RDIMM, LRDIMM, and Intel Optane Persistent Memory. The Intel C621A chipset supports 10 SATA3 ports with RAID configuration options. Enhanced connectivity is offered through quad LAN with Intel i210 Gigabit Ethernet controllers. Expansion options include multiple PCIe 4.0 and 3.0 slots, and M.2 interface.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X12SPL-LN4F
Physical Stats
Form Factor	ATX
Dimension	12.1" x 10" (30.73cm x 25.4cm)
Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores
System Memory
Memory Capacity	8 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type	3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C621A
SATA	Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Quad LAN with Intel® i210 Gigabit Ethernet Controller
Input / Output
SATA	10 SATA3 (6Gbps) port(s)
LAN	4 RJ45 Gigabit Ethernet LAN ports
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SATADOM(Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 4.0 x16, 1 PCIe 4.0 x8 (in x16 slot), 2 PCIe 4.0 x8, 3 PCIe 3.0 x8
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7
Management
Software	Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED	UID/Remote UID Suspend static indicator LED CPU / System Overheat LED
Temperature	CPU thermal trip support PECI
FAN	7x 4-pin fan headers (up to 7 fans) System level control PWM fan speed control Fan speed control Overheat LED indication
Other Features	WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
CPU carrier
SKT-1205L-P4IC-FXC	1	CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00130-0N	1	STD I/O Shield for X12SPL-LN4F with EMI Gasket
Retail Package
CPU carrier
SKT-1205L-P4IC-FXC	1	CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF
I/O Shield
MCP-260-00130-0N	1	STD I/O Shield for X12SPL-LN4F with EMI Gasket
QRG
MNL-2270-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
1U I/O Shield
MCP-260-00131-0N	1	1U I/O Shield for X12SPL-LN4F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113)
MCP-260-00132-0B	1	1U I/O Shield for X12SPL-LN4F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505)
TPM security module
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	1	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H	1	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671H	1	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
