  2. Coopere Lake/Ice Lake(LGA-4189) SKT-P++C621A,8xDDR4 3200

Coopere Lake/Ice Lake(LGA-4189) SKT-P++C621A,8xDDR4 3200

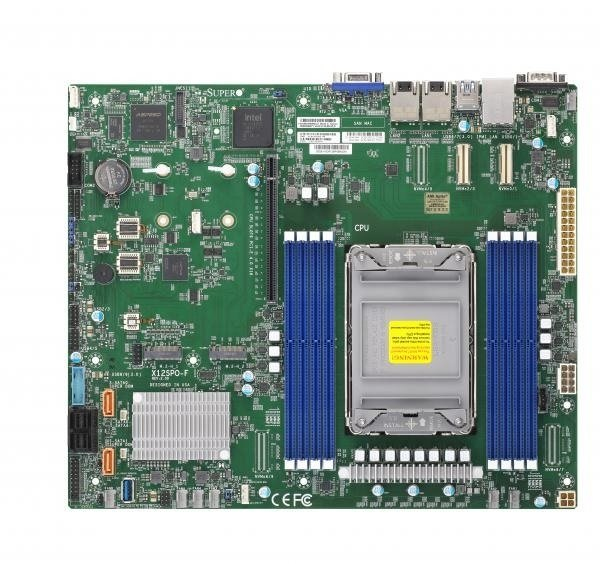

MBD-X12SPO-F-O
https://safeconsulting.no/web/image/product.template/9824/image_1920?unique=5a19258

kr 5,705.67 5705.67 NOK kr 5,705.67

kr 5,705.67

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro MBD-X12SPO-F-O. Processor manufacturer: Intel, Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, SATA III. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I350

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
    • Intel® C621A
    • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHzUp to 2TB Intel® Optane™ Persistent Memory, in 8 DIMM slots
    • 1 PCIe 4.0 x16,2 PCIe 4.0 NVMe x8 Internal Port(s)M.2 Interface:2 SATA/PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with Intel® i350 Gigabit Ethernet Controller
    • Supports 4x NVMe drives via SlimSAS connectors

    Key Applications

    • Enterprise servers
    • Data centers
    • High-performance computing
    • Virtualization

    Description

    3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Intel® C621A Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots Dual LAN with Intel® i350 Gigabit Ethernet Controller 1 PCI-E 4.0 x16, 2 PCI-E 4.0 NVMe x8 Internal Port(s) M.2 Interface: 2 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Supports 4x NVMe drives via SlimSAS connectors

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SPO-F
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 10" (30.48cm x 25.4cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
    Core
    • Up to 40 cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
    • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
    Memory Type
    • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® i350 Gigabit Ethernet Controller
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x16
    M.2
    • M.2 Interface: 2 SATA/PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.2
    • SMBIOS 3.0 or later
    • UEFI 2.7
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X12SPO-F with EMI Gasket
    Retail Package
    CPU carrier
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X12SPO-F with EMI Gasket
    QRG
    MNL-2226-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Power extension cable
    CBL-0042L124 pin power connector extension cable
    TPM security module
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
