  2. Cooper Lake/Ice Lake (LGA-4189) SKT-P+ + C621A, 8x DDR4

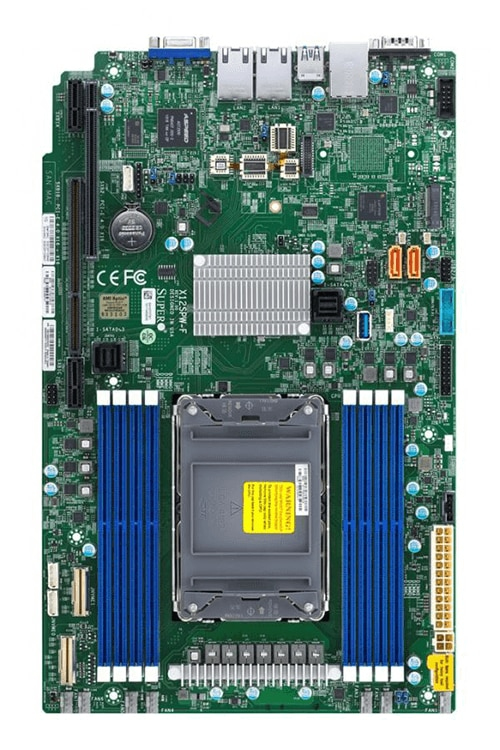

Cooper Lake/Ice Lake (LGA-4189) SKT-P+ + C621A, 8x DDR4

MBD-X12SPW-F-O
https://safeconsulting.no/web/image/product.template/9828/image_1920?unique=5a19258

kr 5,362.57 5362.57 NOK kr 5,362.57

kr 5,362.57

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro X12SPW-F. Processor manufacturer: Intel, Processor socket: LGA 3647 (Socket P), Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
    • Intel® C621A
    • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHzUp to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
    • 1 PCIe 4.0 x16 Right Riser Slot,1 PCIe 4.0 x32 Left Riser Slot,4 PCIe 4.0 NVMe x4 Internal Port(s)M.2 Interface:PCIe 3.0 x4 and SATAM.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 1GbE with Intel® I210
    • I/O: 1 VGA, 2 COM, TPM header
    • 2 SuperDOM with built-in power

    Key Applications

    • Data Centers
    • Enterprise Servers
    • High-Performance Computing
    • Virtualization
    • Database Management

    Description

    The Supermicro X12SPW-F motherboard is designed to provide industry-leading performance and reliability with support for 3rd Gen Intel® Xeon® Scalable processors in a single LGA-4189 socket. It offers flexible storage options with 10 SATA3 ports and various M.2 interfaces, making it ideal for data-intensive applications. Additionally, the board supports up to 2TB of DDR4 memory and includes a robust Intel® C621A chipset. High-speed connectivity and expansion are ensured through multiple PCIe 4.0 slots, while onboard management features like ASPEED AST2600 BMC and comprehensive health monitoring provide efficient and seamless operations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SPW-F
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
    Core
    • Up to 40 cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
    • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
    Memory Type
    • ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM 3DS: 128GB, 256GB
    • LRDIMM: 64GB, 128GB
    • RDIMM: 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with 1GbE with Intel® I210
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x16 Right Riser Slot,
    • 1 PCIe 4.0 x32 Left Riser Slot,
    • 2 PCIe 4.0 x8 SlimSAS connector
    M.2
    • M.2 Interface: PCIe 3.0 x4; SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 3.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL
    • UID
    • RoHS
    • Control of power-on for recovery from AC power loss
    • ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    CPU carrier
    SKT-1205L-P4IC-FXC1CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    QRG
    MNL-2246-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
