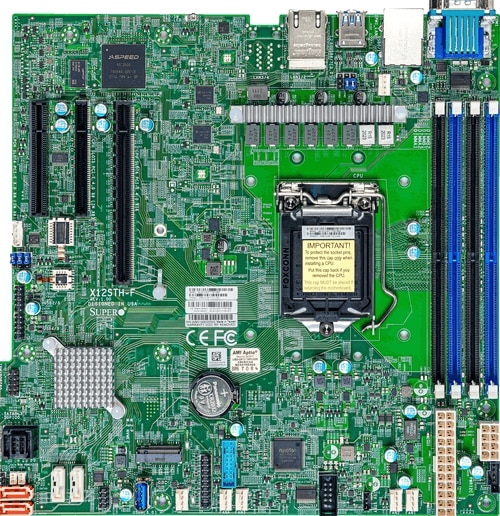

Intel Xeon-E 2300 (Rocket Lake- E)/PentiumCPU,SocketH5LG

MBD-X12STH-F-O
https://safeconsulting.no/web/image/product.template/9836/image_1920?unique=7c1c8fe

kr 4,277.59 4277.59 NOK kr 4,277.59

kr 4,277.59

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-X12STH-F-O motherboard features the Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, and supports up to 128GB ECC UDIMM DDR4-3200MT/s. It offers multiple expansion slots, dual LAN, and various connectivity options, making it ideal for versatile computing needs.

    Key Features

    • Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
    • Intel® C256
    • Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
    • 1 PCIe 4.0 x161 PCIe 4.0 x4 (in x8 slot)1 PCIe 3.0 x4 (in x8 slot)M.2 Interface:PCIe 3.0 x4M.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Dual LAN with Intel® Ethernet Controller I210
    • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 2 SuperDOM with built-in power
    • I/O: 1 VGA, 2 COM, 1 TPM header
    • 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)
    • Gen12 iGPU support

    Description

    The Supermicro MBD-X12STH-F-O is a versatile motherboard designed to support Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® processors, with up to 128GB ECC UDIMM, DDR4-3200MT/s in 4 DIMM slots. It features a variety of expansion slots, including PCIe 4.0 x16, PCIe 4.0 x4, and PCIe 3.0 x4, as well as M.2 support. The motherboard comes with dual LAN featuring the Intel® I210 controller, 8 SATA3 ports with RAID support, and multiple USB 3.2 Gen1 and USB 2.0 ports. Additionally, it includes built-in graphics support and comprehensive system management features like IPMI 2.0. Its robust design and extensive connectivity options make it suitable for a wide range of applications.

    Product Specifications

    Product SKUs
    MBD-X12STH-F
    Physical Stats
    Form FactorMicro-ATX
    Dimension9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
    CoreUp to 8 cores, 16 threads
    System Memory
    Memory Capacity4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
    Memory Type3200/2933/2666 MT/s SDRAM
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C256
    SATAIntel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 ASPEED AST2600 BMC port(s)
    Network ControllersDual LAN with Intel® Ethernet Controller I210
    Input / Output
    SATA8 SATA3 (6Gbps) port(s)
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output1 VGA port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    DOM2 SATADOM(Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x4 (in x8 slot),
    1 PCIe 4.0 x16,
    1 PCIe 4.0 x4 (in x8 slot)
    M.2M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    System BIOS
    BIOS Type256MB UEFI
    BIOS FeaturesACPI 6.0
    SMBIOS 2.7
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0
    Management
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDUID/Remote UID
    CPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support
    Thermal Monitor 2 (TM2) support
    PECI
    FAN6x 4-pin fan headers (up to 6 fans)
    Thermal control tachometer fan connectors
    Fan speed control
    6 fans with tachometer status monitoring
    Overheat LED indication
    Other FeaturesWOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00164-0N1STD I/O Shield for X12STH-F with EMI Gasket
    Retail Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00164-0N1STD I/O Shield for X12STH-F with EMI Gasket
    QRG
    Part NumberQuantityDescription
    MNL-2367-QRG1Motherboard Quick Reference Guide

    Optional Part List

    1U I/O Shield
    Part NumberQuantityDescription
    MCP-260-00165-0N-Standard 1U I/O Shield with EMI Gasket
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H-SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H-SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
