Intel Xeon-E 2300 (Rocket Lake- E)FamilySocket H5LGA1200

MBD-X12STL-F-B
https://safeconsulting.no/web/image/product.template/9841/image_1920?unique=1312794

kr 3,508.74 3508.7400000000002 NOK kr 3,508.74

kr 3,508.74

Not Available For Sale

    This combination does not exist.

    Summary Description

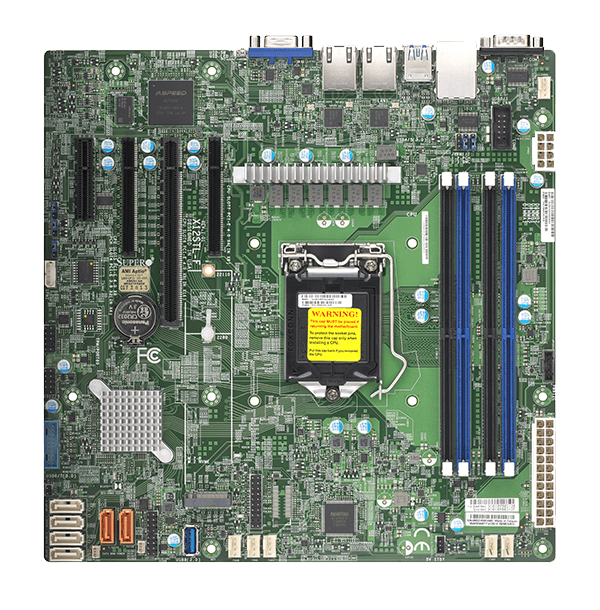

    The Supermicro MBD-X12STL-F-B is a high-performance server motherboard supporting Intel® Xeon® E-2300 and 10th Generation Intel® Pentium® processors. It offers robust connectivity and advanced management features.

    Key Features

    • Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
    • Intel® C252
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
    • 1 PCIe 4.0 x8,1 PCIe 4.0 x8 (in x16 slot),1 PCIe 4.0 x4 (in x8 slot)1 PCIe 3.0 x2 (in x4 slot)M.2 Interface:1 PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Dual LAN with 1GbE with Intel® I210
    • Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA D-Sub Connector port
    • 2 SuperDOM with built-in power
    • 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)

    Description

    The Supermicro MBD-X12STL-F-B is designed for server and storage applications, featuring support for Intel® Xeon® E-2300 and 10th Generation Intel® Pentium® processors. This motherboard provides up to 128GB of ECC UDIMM DDR4-3200MHz memory across 4 DIMM slots. It includes multiple PCIe slots for expansion, dual LAN ports with Intel® I210 controllers, and a variety of onboard management and security features. It is equipped with the Intel® C252 chipset, supporting 6 SATA 3.0 ports with RAID options.

    Product Specifications

    Product SKUs
    MBD-X12STL-F
    Physical Stats
    Form FactormicroATX
    Dimension9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
    Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
    CoreUp to 8 cores
    System Memory
    Memory Capacity4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
    Memory Type3200/2933/2666 MT/s SDRAM
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C252
    SATAIntel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 ASPEED AST2600 BMC port(s)
    Network ControllersDual LAN with 1GbE with Intel® I210
    Input / Output
    SATA6 SATA3 (6Gbps) port(s)
    LAN2 1GbE LAN ports
    USB4 USB 2.0 port(s) (2 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output1 VGA D-Sub Connector port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    DOM2 SuperDOM(Disk on Module) power connector
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 4.0 x8 (in x16 slot),
    1 PCIe 4.0 x8,
    1 PCIe 4.0 x4 (in x8 slot),
    1 PCIe 3.0 x2 (in x4 slot)
    M.2M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    System BIOS
    BIOS Type256MB UEFI
    BIOS FeaturesACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0
    Management
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LEDUID/Remote UID
    BMC/IPMI Heartbeat LED
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support
    Thermal Monitor 2 (TM2) support
    PECI
    FAN6x 4-pin fan headers (up to 6 fans)
    Thermal control tachometer fan connectors
    Fan speed control
    6 fans with tachometer status monitoring
    Overheat LED indication
    Other FeaturesWOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-20°C - 60°C (-4°F - 140°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L2-
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00042-0N1-
    Retail Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L2-
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00042-0N1-
    QRG
    Part NumberQuantityDescription
    MNL-2353-QRG1-
