    Summary Description

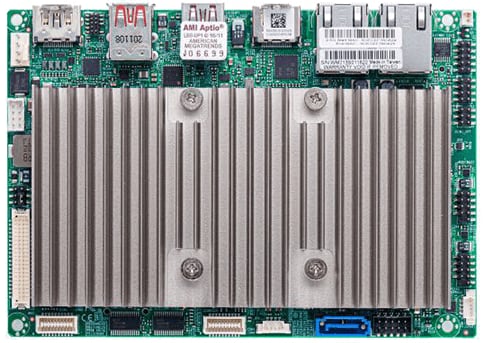

    The Supermicro MBD-X12STN-H-O, a 3.5" single board computer, features an 11th Generation Intel® Core™ i7-1185GRE Processor with Intel® Iris® Xe graphics. It offers high-speed connectivity, versatile I/O, and superior expansion options, making it an ideal solution for various industrial applications.

    Key Features

    • Intel® 11th Generation Core™ i7-1185GRE Processor
    • Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
    • High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
    • 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
    • Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
    • Accelerated AI inferencing and computer vision in parallel without extra hardware
    • 100% wide temp grade design and components applied
    • 12-24V (10% tolerance) wide range power input support
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Key Applications

    • Industrial automation
    • Embedded systems
    • Edge AI applications
    • Digital signage
    • Smart surveillance
    • IoT gateways

    Description

    The Supermicro MBD-X12STN-H-O is a feature-rich 3.5" single board computer (SBC) that incorporates the powerful Intel® Core™ i7-1185GRE Processor and Intel® Iris® Xe graphics. Designed for industrial and embedded applications, this SBC supports up to 64GB of DDR4 memory, dual 2.5GbE LAN, multiple display outputs including HDMI and DP, and rich I/O options like USB 3.2 Gen2 and multiple COM ports. With comprehensive expansion slots including various M.2 interfaces, along with AI and computer vision capabilities, the MBD-X12STN-H-O is a versatile and robust solution for modern computing needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12STN-H
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • 11th Generation Intel® Core™ i7-1185GRE Processor
    • Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP
    Core
    • Up to 4 cores, 8 threads / 12MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
    Memory Type
    • 3200 MT/s non-ECC DDR4 Unbuffered ered 260pin SODIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® Iris® Xe Graphics port(s)
    • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz),HDMI 2.0b (max. resolution up to 4096x2160@60Hz),HDMI 1.4b (max. resolution up to 4096x2160@30Hz),DP (Alt mode, max. resolution up to 4096x2304@60Hz)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I225-IT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 2.5 Gigabit Ethernet LAN port
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)
    Video Output
    • 2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s)
    Serial Port
    • 4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
    TPM
    • 1 TPM Chip
    Others
    • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
    • 1 speaker out header with 3W amplifier
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    Expansion Slots
    PCIe
    • No/A
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holderM.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2)M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.2
    • SMBIOS 3.0 or later
    • UEFI 2.7
    • PCI FW 3.0
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
    Operating Environment
    Operating Temperature Range
    • -40°C - 60°C (0°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0146PL1X12STN passive heatsink with height 25mm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06651COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0146PL1X12STN passive heatsink with height 25mm
    QRG
    MNL-2395-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-00008-0N1Aluminum block Heatspreader for X11SWN
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    SATA Power Cable
    CBL-PWEX-10321SATA Power Cable 20cm
