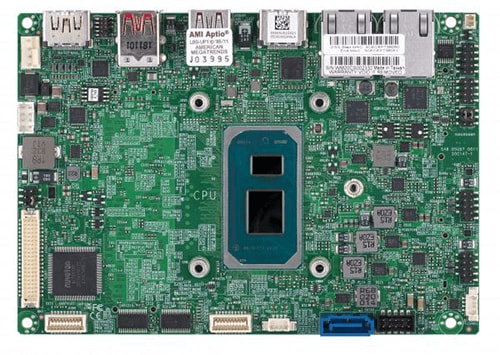

X12STN-L-WOHS, Embedded 3.5" SBC, Intel TigerLake-UP3SoC

Name: X12STN-L-WOHS, Embedded 3.5" SBC, Intel TigerLake-UP3SoC
Brand: supermicro
SKU: MBD-X12STN-L-WOHS-B
Price: 5438.81 NOK
Availability: BackOrder

SKU:

MBD-X12STN-L-WOHS-B

kr 5,438.81 5438.81 NOK kr 5,438.81

kr 5,438.81

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X12STN-L-WOHS-B is designed for high-performance computing and offers a wide range of features including dual 2.5GbE, multiple USB ports, display support, and accelerated AI capabilities. It is suitable for industrial and edge computing applications.

Key Features

Intel® 11th Generation Core™ i3-1115GRE Processor
Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
Accelerated AI inferencing and computer vision in parallel without extra hardware
100% wide temp grade design and components applied
12-24V (10% tolerance) wide range power input support
Without heatsink for customers flexible thermal design
Hailo-8™ powerful and efficient Edge AI solution integration ready

Key Applications

Industrial Automation
Edge AI Computing
Digital Signage
Kiosk Systems
Medical Devices

Description

Supermicro MBD-X12STN-L-WOHS-B features an Intel® 11th Generation Core™ i3-1115GRE Processor, extensive display output options, and a variety of I/O interfaces. It supports up to 64GB of DDR4 memory, accelerated AI inferencing, and high-speed connectivity through dual 2.5GbE ports. Ideal for industrial applications with its wide temperature range support and robust power input capabilities.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X12STN-L-WOHS
Physical Stats
Form Factor	3.5" SBC
Dimension	5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU	11th Generation Intel® Core™ i3-1115GRE Processor Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP
Core	Up to 2 cores, 4 threads / 6MB Cache
System Memory
Memory Capacity	2 DIMM slots Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
Memory Type	3200 MT/s non-ECC DDR4 Unbuffered 260pin SODIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
On-Board Devices
Chipset	System on Chip
Audio	ALC 888S HD Audio
Graphics	1 Intel® UHD Graphics for 11th Gen Intel® Processors port(s) Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz)
Network Controllers	Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
Input / Output
SATA	1 SATA3 (6Gbps) port(s)
LAN	2 RJ45 2.5 Gigabit Ethernet LAN port
USB	4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C) 4 USB 2 port(s) (4 via header)
Video Output	2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s)
Serial Port	4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM	1 TPM Chip
Others	1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) 1 speaker out header with 3W amplifier 1 8-bit GPIO header 1 SMBus header 1 System Fan
Expansion Slots
PCIe	No/A
M.2	Key: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder, M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2), M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 PCI FW 3.0 RTC (Real Time Clock) Wakeup
Management
Software	Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
System Management Software	SuperDoctor 5
Power Configurations	CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper, ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
LED	Standby alert LED
Temperature	CPU thermal trip support
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
Operating Environment
Operating Temperature Range	-40°C - 85°C (0°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Retail Package
Audio Cable
CBL-OTHR-0986	1	Audio Cable 20cm
COM Cable
CBL-CDAT-0665	1	COM Cable 20cm
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
QRG
MNL-2395-QRG	1	Motherboard Quick Reference Guide
SATA cable
CBL-SAST-0881	1	SATA Data cable 25CM
SATA Power Cable
CBL-PWEX-1030	1	SATA Power Cable 20cm
USB Cable
CBL-CUSB-0983	1	USB2.0 cable 20cm

Optional Part List

Part Number	Quantity	Description
DC IN Power Cable (DC Jack)
CBL-PWEX-1110-15	1	DC power jack,vertical to 2x4, 2.0mm, 15cm
Heatspreader
MCP-350-00008-0N	1	Aluminum block Heatspreader for X11SWN
Power Adapter
MCP-250-10134-0N	1	60W 12V 5A, AC to DC lockable power adapter,HF
SATA Power Cable
CBL-PWEX-1032	1	SATA Power Cable 20cm
