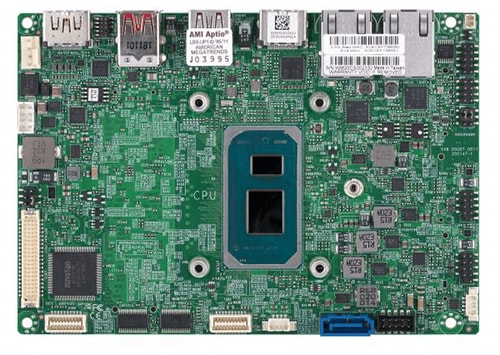

X12STN-L-WOHS, Embedded 3.5" SBC, Intel TigerLake-UP3SoC

MBD-X12STN-L-WOHS-O
https://safeconsulting.no/web/image/product.template/9858/image_1920?unique=7c1c8fe

kr 6,192.72 6192.72 NOK kr 6,192.72

kr 6,192.72

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X12STN-L-WOHS-O

    Product Highlights

    • Intel® 11th Generation Core™ i3-1115GRE Processor
    • Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
    • High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
    • 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
    • Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
    • Accelerated AI inferencing and computer vision in parallel without extra hardware
    • 100% wide temp grade design and components applied
    • 12-24V (10% tolerance) wide range power input support
    • Without heatsink for customers flexible thermal design
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Description

    Supermicro Motherboard MBD-X12STN-L-WOHS-O

    Product Specifications

    Product SKUs:
    MBD-X12STN-L-WOHS
    Physical Stats
    Form Factor3.5" SBC
    Dimension5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU11th Generation Intel® Core™ i3-1115GRE ProcessorSingle Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP
    CoreUp to 2 cores, 4 threads / 6MB Cache
    System Memory
    Memory Capacity2 DIMM slotsUp to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
    Memory Type3200 MT/s non-ECC DDR4 Unbuffered 260pin SODIMM
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetSystem on Chip
    AudioALC 888S HD Audio
    Graphics1 Intel® UHD Graphics for 11th Gen Intel® Processors port(s)Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz)
    Network ControllersDual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
    Input / Output
    SATA1 SATA3 (6Gbps) port(s)
    LAN2 RJ45 2.5 Gigabit Ethernet LAN port
    USB4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)4 USB 2 port(s) (4 via header)
    Video Output2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s)
    Serial Port4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
    TPM1 TPM Chip
    Others1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)1 speaker out header with 3W amplifier1 8-bit GPIO header1 SMBus header1 System Fan
    Expansion Slots
    PCIeN/A
    M.2Key: B-Key, M-Key, E-KeyM.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder, M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2), M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.2SMBIOS 3.0 or laterUEFI 2.7PCI FW 3.0RTC (Real Time Clock) Wakeup
    Management
    SoftwareRedfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsCPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper, ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
    LEDStandby alert LED
    TemperatureCPU thermal trip support
    Other FeaturesWOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
    Operating Environment
    Operating Temperature Range-40°C - 85°C (0°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
