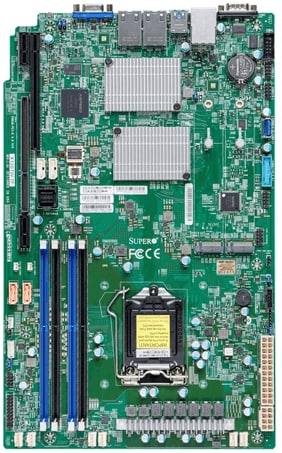

Intel Xeon-E 2300 (Rocket Lake- E)/PentiumCPU,SocketH5LG

MBD-X12STW-TF-O
https://safeconsulting.no/web/image/product.template/9862/image_1920?unique=7c1c8fe

kr 5,256.12 5256.12 NOK kr 5,256.12

kr 5,256.12

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-X12STW-TF-O is a robust motherboard supporting the Intel® Xeon® E-2300 series and 10th Generation Intel® Pentium® processors, featuring dual LAN ports, extensive memory capacity, and advanced management tools.

    Key Features

    • Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
    • Intel® C256
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
    • 1 PCIe 4.0 x16 Left Riser Slot1 PCIe 3.0 x4 (in x8, Right Riser slot)
    • M.2 Interface:1 PCIe 4.0 x4 and 1 PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key Double Height Connector
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA port
    • 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)1 USB 3.2 Gen2 port (1 Type A)6 USB 2.0 ports (2 rear + 4 via headers)

    Description

    The Supermicro MBD-X12STW-TF-O motherboard is designed for performance and reliability. It supports the Intel® Xeon® E-2300 series and 10th Generation Intel® Pentium® processors, allowing for up to 128GB Unbuffered ECC UDIMM DDR4-3200 memory. This motherboard includes dual LAN ports powered by Intel® X550 10GBase-T Ethernet Controller, making it ideal for high-speed network applications. In addition, the board is equipped with multiple USB and M.2 interfaces, extensive SATA3 ports with RAID support, and comprehensive management and monitoring features, making it suitable for a wide range of professional applications.

    Product Specifications

    Product SKUs
    MBD-X12STW-TF
    Physical Stats
    Form FactorProprietary WIO
    Dimension8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
    Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
    CoreUp to 8 cores, 16 threads
    System Memory
    Memory Capacity4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
    Memory Type3200/2933/2666 MT/s SDRAM
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C256
    SATAIntel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 ASPEED AST2600 BMC port(s)
    Network ControllersDual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    SATA8 SATA3 (6Gbps) port(s)
    LAN2 RJ45 10 Gigabit Ethernet LAN ports
    USB6 USB 2.0 port(s) (4 via header; 2 rear)
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    1 USB 3.2 Gen2 port(s) (1 type A)
    Video Output1 VGA port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    DOM2 SATADOM(Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 3.0 x4 (in x8 slot)
    M.2M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    Double Height Connector
    System BIOS
    BIOS Type256MB UEFI
    BIOS FeaturesACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0
    Management
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power ConfigurationsACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LEDUID/Remote UID
    CPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support
    Thermal Monitor 2 (TM2) support
    PECI
    FAN6x 4-pin fan headers (up to 6 fans)
    Thermal control tachometer fan connectors
    Fan speed control
    6 fans with tachometer status monitoring
    Overheat LED indication
    Other FeaturesWOL, UID, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L457.5CM SATA FLAT S-S PBF
    QRG
    Part NumberQuantityDescription
    MNL-2354-QRG1Motherboard Quick Reference Guide

    Optional Part List

    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
