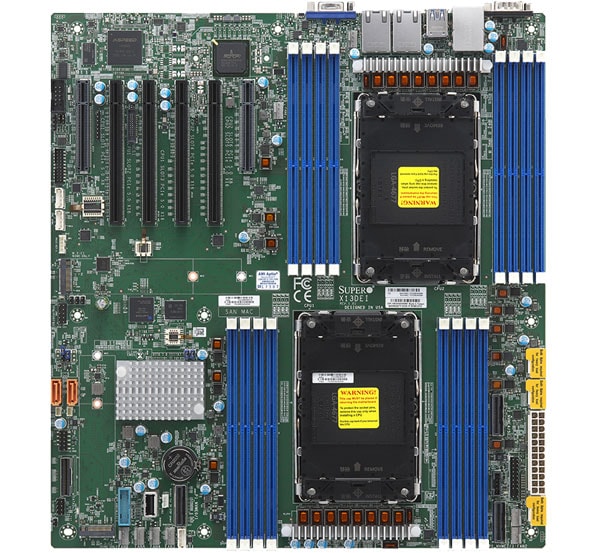

X13 Mainstream DP MB with 16DIMM DDR5,BCM5720, AST2600,

Name: X13 Mainstream DP MB with 16DIMM DDR5,BCM5720, AST2600,
Brand: supermicro
SKU: MBD-X13DEI-B
Price: 9149.4 NOK
Availability: OutOfStock

SKU:

MBD-X13DEI-B

kr 9,149.40 9149.4 NOK kr 9,149.40

kr 9,149.40

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X13DEI-B is designed for high-performance computing applications. It supports the latest 5th/4th Gen Intel® Xeon® Scalable processors, up to 4TB DDR5-5600MT/s memory, and is equipped with extensive I/O and expansion capabilities, including PCIe 5.0 slots, multiple M.2 slots, and USB ports.

Key Features

Support CXL
5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
Intel® C741 Chipset
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots
4 PCIe 5.0 x16
2 PCIe 5.0 x8
Broadcom BCM5720 Dual ports 1G LAN
6 USB3.0 and 3 USB2.0
2 SATA DOM ports
2 M.2
6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors
8 SATA3.0 ports

Key Applications

Data centers
Server infrastructures
High-performance computing
Enterprise applications

Description

The Supermicro MBD-X13DEI-B is a robust motherboard built for intensive workloads and demanding applications. It features dual socket support for the latest 5th/4th Gen Intel® Xeon® Scalable processors with up to 64 cores, providing exceptional processing power. The motherboard supports up to 4TB of DDR5-5600MT/s ECC RDIMM memory to ensure maximum performance and data integrity. It is equipped with the Intel® C741 chipset and offers multiple I/O options, including 6 USB 3.0 ports, 3 USB 2.0 ports, eight SATA3 ports, and six NVMe ports via MCIO connectors. With advanced features such as ASPEED AST2600 BMC for dedicated IPMI LAN, trusted platform module support, and comprehensive system monitoring, the MBD-X13DEI-B is an ideal choice for data centers, server infrastructures, and high-performance computing environments.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X13DEI
Physical Stats
Form Factor	EATX
Dimension	12.1" x 13.05" (30.74cm x 33.15cm)
Processor
CPU	5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Core	Up to 64 cores
System Memory
Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes	16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB RDIMM: Up to 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C741
SATA	Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
IPMI	ASPEED AST2600 BMC
Network Controllers	Dual LAN Dual LAN with Broadcom BCM5720 1GBase-T
Input / Output
SATA	8 SATA3 (6Gbps) port(s) 2 SATA3 (6Gbps) port(s)
LAN	1 RJ45 Dedicated IPMI LAN port
USB	6 USB 3 port(s) (2 via header; 4 rear) 3 USB 2 port(s) (2 via header; 1 Type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header
Others	3 MCIO PCIe 5.0 x8
Expansion Slots
PCIe	2 PCIe 5.0 x8, 4 PCIe 5.0 x16
M.2	M.2 Interface: 2 PCIe 4.0 x2 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	AMI 32MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 2.8/3.5 UEFI 2.8A Plug and Play (PnP) PCI FW 3.2
Management
Software	Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	8x 4-pin fan headers (up to 8 fans) Fan speed control Overheat LED indication 8x fans with tachometer monitoring
Other Features	UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
CPU carrier
SKT-1333L-0000-FXC	2	CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC)
SKT-1424L-001B-LTS	2	CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC)
I/O Shield
MCP-260-00042-3N	1	-
SATA cable
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF
Retail Package
CPU carrier
SKT-1333L-0000-FXC	2	CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC)
SKT-1424L-001B-LTS	2	CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC)
I/O Shield
MCP-260-00042-3N	1	-
QRG
MNL-2509-QRG	1	Motherboard Quick Reference Guide
SATA cable
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF

Optional Part List

Part Number	Quantity	Description
TPM security module (optional, not included)
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9672V-FIPS	1	SPIcapable TPM 2.0 with Infineon 9672 controller with vertical form factor
AOM-TPM-9672V	1	SPIcapable TPM 2.0 with Infineon 9672 controller with vertical form factor
