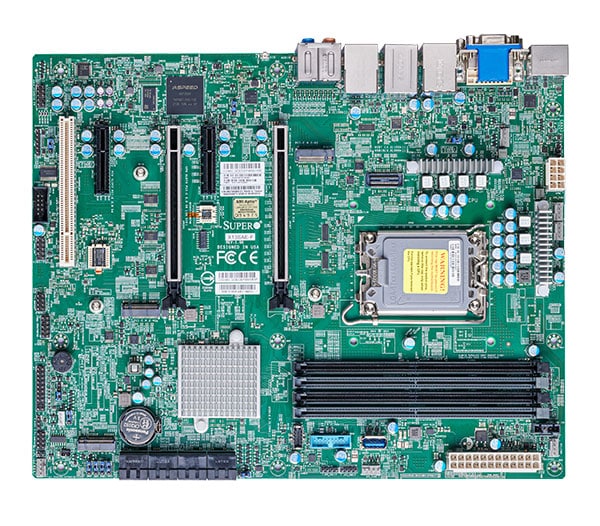

X13SAE-F,ATX,LGA1700,Intel W680 Chipset,4x DIMM/ECC or n

Name: X13SAE-F,ATX,LGA1700,Intel W680 Chipset,4x DIMM/ECC or n
Brand: supermicro
SKU: MBD-X13SAE-F-B
Price: 4778.02 NOK
Availability: BackOrder

SKU:

MBD-X13SAE-F-B

kr 4,778.02 4778.02 NOK kr 4,778.02

kr 4,778.02

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X13SAE-F-B motherboard supports 14th, 13th, and 12th Gen Intel® Core™ i9/i7/i5/i3 processors with a single LGA-1700 socket and up to 150W TDP. Featuring the Intel® W680 chipset, it supports up to 192GB of DDR5 memory and includes multiple PCIe slots, M.2 interfaces, robust networking options, and comprehensive I/O connectivity.

Key Features

14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
Intel® W680
192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
M.2 Interface:3 PCIe 4.0 x4 (RAID 0, 1, 5)M.2 Form Factor:2280M.2 Key:M-Key
Single LAN with Intel® Ethernet I225-LM Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
IPMI Supported

Key Applications

High-performance computing
Enterprise servers
Data centers
Workstations
Virtualization

Description

The Supermicro MBD-X13SAE-F-B is an industry-leading ATX motherboard designed for high-performance computing. It supports 14th, 13th, and 12th Gen Intel® Core™ i9/i7/i5/i3 processors with single LGA-1700 socket compatibility, delivering up to 150W TDP. Powered by the Intel® W680 chipset, this motherboard supports up to 192GB of DDR5 ECC/non-ECC UDIMM memory across four DIMM slots, ensuring exceptional performance and stability. It features dual PCIe 5.0 x16 slots (with configurations of 16/NA or 8/8), dual PCIe 3.0 x4 slots, multiple M.2 interfaces, and abundant I/O options including VGA, DP 1.4a, HDMI 2.0b, and DVI-D ports. Advanced networking capabilities include single LAN with Intel® I225-LM and Intel® PHY I219LM controllers, plus dedicated LAN for IPMI. The MBD-X13SAE-F-B comes equipped with a range of management software like Supermicro Server Manager and SuperDoctor® 5, offering comprehensive infrastructure management.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X13SAE-F
Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU	14th/13th/12th Gen Intel® Core™ i3/i5/i7/i9 Processors Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 150W TDP
Core	Up to 24 (8+16) cores
System Memory
Memory Capacity	4 DIMM slots Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
Memory Type	4400/4000/3600 MT/s 192GB
DIMM Sizes	8GB, 16GB, 24GB, 32GB, 48GB UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® W680
SATA	Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
IPMI	ASPEED AST2600 BMC
Audio	ALC 888S HD Audio
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro Single LAN with Intel® Ethernet I225-LM Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMI
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 2.5 Gigabit Ethernet LAN port
USB	3 USB 3.2 Gen1x1 port(s) (1 Vertical Type A; 2 via header) 4 USB 2.0 port(s) (2 via header; 2 rear) 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header) 3 USB 3.2 Gen2x1 port(s) (3 rear type A)
Video Output	1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header
Expansion Slots
PCIe	2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4
M.2	M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5 Form Factor: 2280 Key: M-Key
Note	1 5V PCI 32bit
System BIOS
BIOS Type	32MB SPI Flash with AMI BIOS
BIOS Features	ACPI 6.0 Plug and Play (PnP) BIOS rescue hot keys Riser card auto-detection support SMBIOS 3.0 or later
Management
Software	Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED	Power LED Catastrophic Error LED
FAN	5x 4-pin fan headers (up to 5 fans) Fan speed control Overheat LED indication
Other Features	CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Shield
MCP-260-00151-0N	1	IO shield
SATA Cables
CBL-0044L	2	SATA Cables
Retail Package
I/O Shield
MCP-260-00151-0N	1	IO shield
Quick Reference Guide
MNL-2425-QRG	1	Quick Reference Guide
SATA Cables
CBL-0044L	4	SATA Cables

Optional Part List

Part Number	Quantity	Description
TPM security module (optional, not included)
AOM-TPM-9670V	1	TPM for Intel Core CPU
