  2. X13SAE-F,ATX,LGA1700,Intel W680 Chipset,4x DIMM/ECC or n

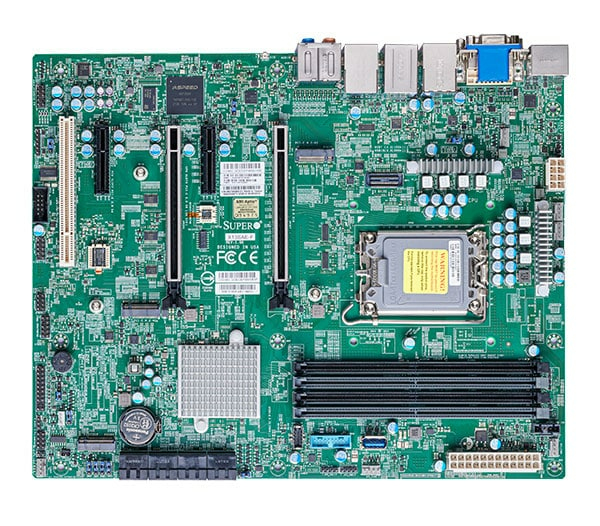

X13SAE-F,ATX,LGA1700,Intel W680 Chipset,4x DIMM/ECC or n

MBD-X13SAE-F
https://safeconsulting.no/web/image/product.template/8891/image_1920?unique=73d2afe

kr 4,866.97 4866.97 NOK kr 4,866.97

kr 4,866.97

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro MBD-X13SAE-F. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0, RAID levels: 0, 1, 5, 10. HDMI version: 2.0b, DisplayPort version: 1.4a. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel® I219-LM

    Key Features

    • 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
    • Intel® W680
    • 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
    • 2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
    • M.2 Interface:3 PCIe 4.0 x4 (RAID 0, 1, 5)M.2 Form Factor:2280M.2 Key:M-Key
    • Single LAN with Intel® Ethernet I225-LM Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
    • 8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
    • 1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
    • IPMI Supported

    Key Applications

    • High-performance computing
    • Data-intensive applications
    • Enterprise servers
    • Workstations
    • Virtualization
    • Network-attached storage

    Description

    The Supermicro MBD-X13SAE-F motherboard is designed for high performance and scalability, supporting 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors with a single socket LGA-1700 and up to 150W TDP. Featuring the Intel® W680 chipset, this motherboard supports up to 192GB of Unbuffered ECC/non-ECC UDIMM DDR5-4400MT/s memory across 4 DIMM slots. It offers substantial expansion options with 2 PCIe 5.0 x16 slots, 2 PCIe 3.0 x4 slots, and 3 M.2 PCIe 4.0 x4 interfaces supporting RAID 0, 1, and 5. Connectivity includes 8 SATA3 ports with RAID 0, 1, 5, 10, dual Intel® LAN ports, extensive USB ports, various video outputs, and IPMI support. Robust management features include KVM with dedicated LAN, IPMI 2.0, Redfish API, and more.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAE-F
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU
    • 14th/13th/12th Gen Intel® Core™ i3/i5/i7/i9 Processors
    • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 150W TDP
    Core
    • Up to 24 (8+16) cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
    Memory Type
    • 4400/4000/3600 MT/s 192GB
    DIMM Sizes
    • 8GB, 16GB, 24GB, 32GB, 48GB
    • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® W680
    SATA
    • Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
    IPMI
    • ASPEED AST2600 BMC
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
    • Single LAN with Intel® Ethernet I225-LM
    • Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMI
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 1 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 2.5 Gigabit Ethernet LAN port
    USB
    • 3 USB 3.2 Gen1x1 port(s) (1 Vertical Type A; 2 via header)
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
    • 3 USB 3.2 Gen2x1 port(s) (3 rear type A)
    Video Output
    • 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 5.0 x16 slots (16/NA or 8/8),
    • 2 PCIe 3.0 x4
    M.2
    • M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5
    • Form Factor: 2280
    • Key: M-Key
    Note
    • 1 5V PCI 32bit
    System BIOS
    BIOS Type
    • 32MB SPI Flash with AMI BIOS
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • BIOS rescue hot keys
    • Riser card auto-detection support
    • SMBIOS 3.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
    LED
    • Power LED
    • Catastrophic Error LED
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00151-0N1IO shield
    SATA Cables
    CBL-0044L2SATA Cables
    Retail Package
    I/O Shield
    MCP-260-00151-0N1IO shield
    Quick Reference Guide
    MNL-2425-QRG1Quick Reference Guide
    SATA Cables
    CBL-0044L4SATA Cables

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V1TPM for Intel Core CPU
