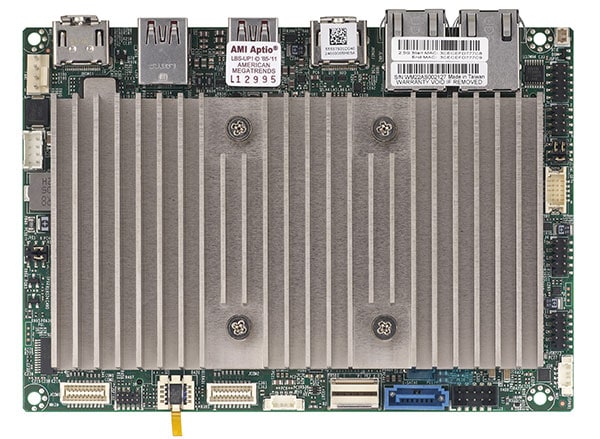

X13SAN-E, Embedded 3.5" SBC, Intel Alder-Lake-P SoC, i5-

MBD-X13SAN-E-B
https://safeconsulting.no/web/image/product.template/9697/image_1920?unique=ad6cd20

kr 7,996.01 7996.01 NOK kr 7,996.01

kr 7,996.01

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X13SAN-E-B

    Product Highlights

    • First performance hybrid architecture from Intel
    • 4 independent display with 4K resolution
    • Fast AI hardware acceleration
    • Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
    • Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
    • High speed connectivity through dual 2.5GbE
    • 100% wide temp grade design and components applied
    • 12-24V wide range power with RVP and TVS
    • Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Description

    Supermicro Motherboard MBD-X13SAN-E-B

    Product Specifications

    Product SKUs:
    MBD-X13SAN-E
    Physical Stats
    Form Factor3.5" SBC
    Dimension5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU12th Generation Intel® Core™ i5-1245UE ProcessorSingle Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP
    CoreUp to 10 cores, 12 threads / 12MB Cache
    System Memory
    Memory Capacity2 DIMM slotsUp to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz
    Memory Type4800 MT/s non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes8GB, 16GB, 32GB
    Memory Voltage1.1V
    On-Board Devices
    ChipsetSystem on Chip
    SATAIntel® 600 Series controller for 1 SATA3 ports
    AudioALC 888S HD Audio
    Graphics1 Intel® Iris® Xe Graphics port(s)4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4
    Network ControllersDual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
    Input / Output
    SATA1 SATA3 port(s)
    USB6 USB port(s) (4 via header; 2 rear type A)2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode))
    Video Output1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s)
    Serial Port4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232
    TPM1 TPM Chip
    Others1 8-bit GPIO header1 SMBus header1 System Fan
    Expansion Slots
    PCIe1 PCIe 4.0 x4 SlimSAS
    M.2M.2 Interface: 1 SATA/USB3/USB2Form Factor: 2242/2280Key: B-Key
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.4SMBIOS 3.5 or laterUEFI 2.8PCI FW 3.0RTC (Real Time Clock) Wakeup
    Management
    System Management SoftwareSuperDoctor® 5
    Power ConfigurationsACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V
    LEDPower LEDLAN activity LEDHDD Activity LED
    TemperatureCPU thermal trip supportperipheral temperatureSystem temperatureCPU temperaturePCH temperature
    Other FeaturesRoHS
    FAN4x 4-pin fan headers (up to 4 fans)
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
