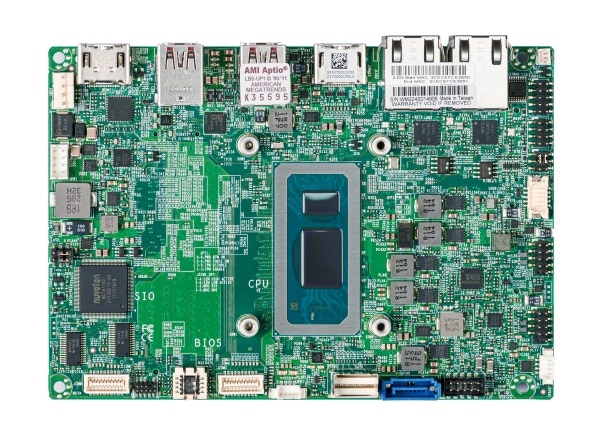

    Summary Description

    The Supermicro MBD-X13SAN-H-WOHS-B motherboard leverages Intel's first performance hybrid architecture, offering robust AI hardware acceleration, multiple high-resolution display support, and unparalleled connectivity options. Designed for industrial and edge applications.

    Key Features

    • First performance hybrid architecture from Intel
    • 4 independent display with 4K resolution
    • Fast AI hardware acceleration
    • Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
    • Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
    • High speed connectivity through dual 2.5GbE
    • 100% wide temp grade design and components applied
    • 12-24V wide range power with RVP and TVS
    • Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Key Applications

    • Industrial Automation
    • Edge Computing
    • AI Deployment
    • Embedded Systems

    Description

    The Supermicro MBD-X13SAN-H-WOHS-B motherboard features Intel's 12th Generation Core i7-1265UE Processor in a single FCBGA-1744 socket supporting up to 15W TDP. The compact 3.5" SBC form factor provides powerful computing capabilities with up to 10 cores and 4 independent displays. The system includes DDR5-4800 MHz memory, dual 2.5GbE LAN, numerous USB ports, PCIe Gen4 support through SlimSAS and M.2 expansions, and supports advanced features like AI acceleration. The system also features comprehensive health monitoring and power management options.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAN-H-WOHS
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • 12th Generation Intel® Core™ i7-1265UE Processor
    • Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP
    Core
    • Up to 10 cores, 12 threads / 12MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type
    • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes
    • 8GB, 16GB, 32GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • Intel® 600 Series controller for 1 SATA3 ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® Iris® Xe Graphics port(s)
    • 4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
    Input / Output
    SATA
    • 1 SATA3 port(s)
    USB
    • 6 USB port(s) (4 via header; 2 rear type A)
    • 2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode))
    Video Output
    • 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s)
    Serial Port
    • 4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4 SlimSAS
    M.2
    • M.2 Interface: 1 CNVi/PCIe 3.0 x1/USB2; 1 SATA/USB3/USB2
    • Form Factor: 2230, 2242/2280
    • Key: E-Key, B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • PCI FW 3.0
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V
    LED
    • Power LED
    • LAN activity LED
    • HDD Activity LED
    Temperature
    • CPU thermal trip support
    • peripheral temperature
    • System temperature
    • CPU temperature
    • PCH temperature
    Other Features
    • RoHS
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 85°C (32°F - 185°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06651COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    QRG
    -1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-00008-0N1Aluminum block Heatspreader for X11SWN/X12STN/X13SAN
    Power Adapter
    MCP-250-10137-0N184W Lockable AC to DC power adapter without power cord
    USB3.1 Cable
    CBL-CUSB-08261USB3.2 Gen1 cable 1.25mm, 2x5P, 15CM
    x4 SlimSAS to U.2 Cable
    CBL-SAST-1240A-851Slimeline x4 to PCIe SFF-8639, 1x4, PH5.08, 40CM
