  2. X13SAN-H-WOHS, Embedded 3.5" SBC, Intel Alder-Lake-P So

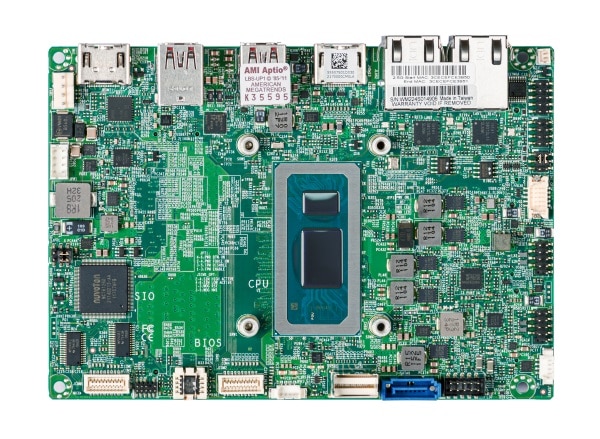

X13SAN-H-WOHS, Embedded 3.5" SBC, Intel Alder-Lake-P So

MBD-X13SAN-H-WOHS-O
https://safeconsulting.no/web/image/product.template/9702/image_1920?unique=160e743

kr 9,073.16 9073.16 NOK kr 9,073.16

kr 9,073.16

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X13SAN-H-WOHS is a high-performance 3.5" Single Board Computer powered by the 12th Generation Intel® Core™ i7-1265UE Processor. Designed for demanding industrial and edge AI applications, it offers exceptional computing power, graphics capabilities, and extensive connectivity options.

    Key Features

    • First performance hybrid architecture from Intel
    • 4 independent display with 4K resolution
    • Fast AI hardware acceleration
    • Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
    • Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
    • High speed connectivity through dual 2.5GbE
    • 100% wide temp grade design and components applied
    • 12-24V wide range power with RVP and TVS
    • Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Key Applications

    • Industrial automation
    • Edge computing
    • AI and machine learning
    • Digital signage
    • Medical devices

    Description

    The Supermicro MBD-X13SAN-H-WOHS motherboard features the latest Intel® hybrid architecture, supporting up to 10 cores and 12 threads. With dual 2.5GbE, DDR5-4800MHz, and PCIe Gen4 x4, it ensures high-speed data transfer and robust performance. The board includes multiple I/O options like USB, HDMI, and DP, catering to diverse application needs. Its rugged design supports a wide operating temperature range, making it ideal for industrial environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAN-H-WOHS
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • 12th Generation Intel® Core™ i7-1265UE Processor
    • Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP
    Core
    • Up to 10 cores, 12 threads / 12MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type
    • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes
    • 8GB, 16GB, 32GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • Intel® 600 Series controller for 1 SATA3 ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® Iris® Xe Graphics port(s)
    • 4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
    Input / Output
    SATA
    • 1 SATA3 port(s)
    USB
    • 6 USB port(s) (4 via header; 2 rear type A)
    • 2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode))
    Video Output
    • 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s)
    Serial Port
    • 4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4 SlimSAS
    M.2
    • M.2 Interface: 1 CNVi/PCIe 3.0 x1/USB2; 1 SATA/USB3/USB2
    • Form Factor: 2230, 2242/2280
    • Key: E-Key, B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • PCI FW 3.0
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V
    LED
    • Power LED
    • LAN activity LED
    • HDD Activity LED
    Temperature
    • CPU thermal trip support
    • peripheral temperature
    • System temperature
    • CPU temperature
    • PCH temperature
    Other Features
    • RoHS
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 85°C (32°F - 185°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06651COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    QRG
    -1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-00008-0N1Aluminum block Heatspreader for X11SWN/X12STN/X13SAN
    Power Adapter
    MCP-250-10137-0N184W Lockable AC to DC power adapter without power cord
    USB3.1 Cable
    CBL-CUSB-08261USB3.2 Gen1 cable 1.25mm, 2x5P, 15CM
    x4 SlimSAS to U.2 Cable
    CBL-SAST-1240A-851Slimeline x4 to PCIe SFF-8639, 1x4, PH5.08, 40CM
