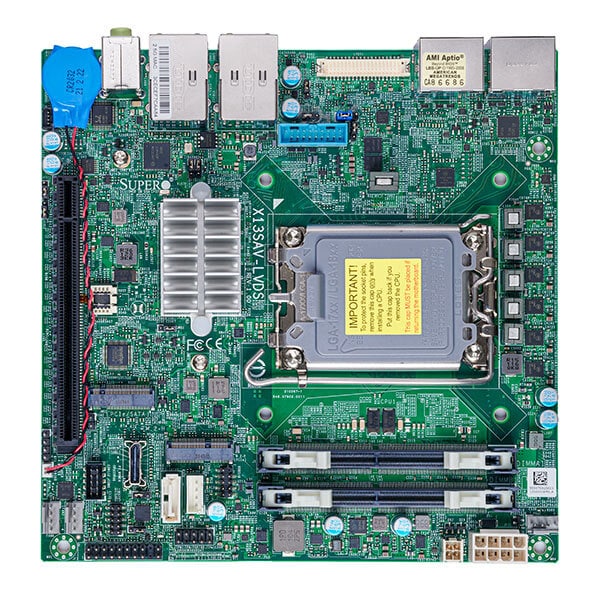

X13SAV-LVDS, Mini ITX, Alder Lake PCH Q670E,LGA1700,PCIe

MBD-X13SAV-LVDS-B
https://safeconsulting.no/web/image/product.template/9711/image_1920?unique=5a19258

kr 3,647.05 3647.05 NOK kr 3,647.05

kr 3,647.05

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X13SAV-LVDS is a high-performance, reliable motherboard suited for business and industrial applications. It supports up to 64GB DDR4 RAM and houses a plethora of expansion slots and robust connectivity options.

    Key Features

    • 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP (**bios v3.1 or above)
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz, in 2 SODIMM slots
    • 1 PCIe 5.0 x16 slot (16/NA or 8/8)1 M.2 M-Key 2280 (PCIe 4.0 x4)1 M.2 E-Key 2230 (PCIe 3.0 x1/USB)
    • Single 1 Gigabit LAN with Intel® Ethernet i210-AT LAN controllerSingle 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
    • Intel® Q670E Controller for 5 SATA3 (1 header, 4 via Oculink) ports; RAID 0,1,5,10
    • 4 Independent Displays (2 DP ports, 1 HDMI 2.0b port, 1 HDMI 1.4a port, LVDS)
    • Supports 12V DC power input
    • Onboard TPM2.0

    Key Applications

    • Business Workstations
    • Industrial Automation
    • Edge Computing
    • Embedded Systems

    Description

    The Supermicro MBD-X13SAV-LVDS motherboard is designed for 14th, 13th, and 12th Generation Intel® Core™ processors. It features a Mini-ITX form factor, supporting up to 64GB DDR4 SODIMM RAM. The board offers a wide array of connectivity options including multiple SATA and USB ports, dual LAN (1 Gigabit and 2.5 Gigabit), and supports up to four independent displays. Ideal for both personal and professional use, the MBD-X13SAV-LVDS is equipped with advanced BIOS features, robust system management, and PC health monitoring capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAV-LVDS
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
    • Single Socket V0 supported
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
    Memory Type
    • 3200/2933/2666 MT/s non-ECC DDR4 SODIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel Q670E
    SATA
    • Intel Q670E controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® UHD Graphics port(s)
    • 4 Independent Displays thru HDMI 2.0b/HDMI1.4/DP/LVDS
    Network Controllers
    • Single LAN with Intel® Ethernet i225LM
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 5 SATA3 (6Gbps) port(s) (1 header, 4 via Oculink)
    USB
    • 2 USB 2 port(s) (2 via header)
    • 4 USB 3.2 Gen2 port(s) (4 rear type A)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    Video Output
    • 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s), 1 HDMI port(s), 1 LVDS port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x16 slots (16/NA or 8/8)
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.0 or later
    • PCI FW 3.0
    • UEFI 2.7
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • Wake-on-LAN, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, PCH temperature, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages
    LED
    • Power LED
    Temperature
    • Thermal Control for 3 Fan Connectors
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • 3 fans with tachometer monitoring
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00166-0N1Standard I/O Shield
    Retail Package
    I/O Shield
    MCP-260-00166-0N1Standard I/O Shield
    QRG
    MNL-2439-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Active Heatsink
    SNK-P0092AP4-2U Active CPU Heat Sink for Intel Socket LGA1700 Platform
    SNK-P0085A4-1U Active CPU Heat Sink for Intel Socket LGA1700 Platform
    I/O Cables
    CBL-OTHR-1061-151Serial Port Cable 15cm
    CBL-CUSB-0621-11Dual USB 3.0 (F) Type A Cable 70cm
    I/O Shield
    MCP-260-00167-0B-1U I/O Shield For E300
    Riser card
    RSC-S-6G5-1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    TPM security module
    AOM-TPM-9670V-C-O1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
