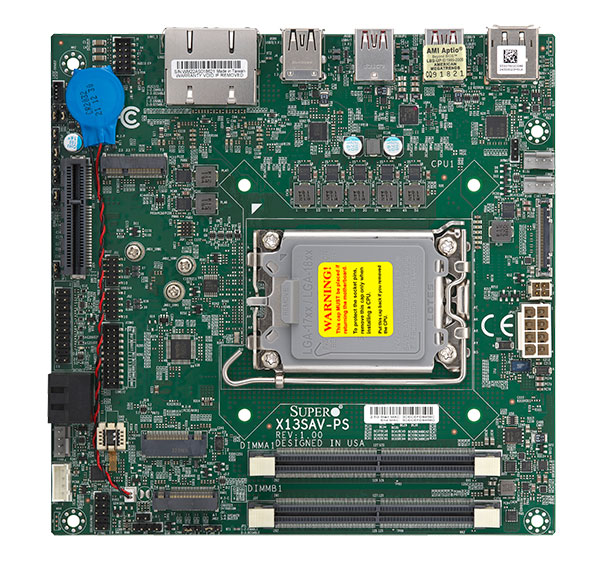

X13SAV-PS, Mini ITX, Alder Lake SoC,LGA1700, PCIe x4

MBD-X13SAV-PS-B
https://safeconsulting.no/web/image/product.template/9713/image_1920?unique=ddaceb9

kr 3,494.76 3494.76 NOK kr 3,494.76

kr 3,494.76

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X13SAV-PS-B

    Product Highlights

    • 12th Gen Intel® Core™ processors , Intel® Celeron® processors, SoC, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz, in 2 SODIMM slots
    • 1 PCIe 4.0 x4 slot
      • 1 M.2 M-Key 2280 (PCIe 4.0 x4)
      • 1 M.2 E-Key 2230 (PCIe 3.0 x1/USB2.0)
      • 1 M.2 B-Key 3052 (PCIe 3.0 x2/USB3.0/USB2.0)
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
    • 4 Independent Displays (1 DP ports, 1 HDMI port, 2 TYPE C support DP/USB3.0)
    • Supports 12V DC power input
    • Onboard TPM2.0

    Description

    Supermicro Motherboard MBD-X13SAV-PS-B

    Product Specifications

    Product SKUs:
    MBD-X13SAV-PS
    Physical Stats
    Form FactorMini-ITX
    Dimension6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU12th Generation Intel ADL-PS CPU model i7-xxxxxUL(or HL), i5-xxxxxUL(or HL), i3-xxxxxUL(or HL), Celeron 7305L ProcessorSingle Socket LGA-1700 supported
    CoreUp to 14 cores
    System Memory
    Memory Capacity2 DIMM slotsUp to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz
    Memory Type4800 MT/s non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes8GB, 16GB, 32GB
    Memory Voltage1.1V
    On-Board Devices
    ChipsetSystem on Chip
    SATASystem on Chip controller for 2 SATA3 (6 Gbps) ports
    Graphics4 Independent Displays thru DP/HDMI/eDP/TYPE C
    Network ControllersDual LAN with Intel® Ethernet i225LM
    Input / Output
    SATA2 SATA3 (6Gbps) port(s)
    USB2 USB 3.2 Gen2 port(s) (2 rear type C)8 USB port(s) (4 rear type A; 4 via header)
    Video Output1 HDMI port(s), 1 DP (DisplayPort) port(s)
    Serial Port2 COM Port(s) (2 header RS232/422/485)
    Expansion Slots
    PCIe1 PCIe 4.0 x4
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.1SMBIOS 3.0 or laterPCI FW 3.0UEFI 2.7RTC (Real Time Clock) Wakeup
    Management
    System Management SoftwareWake-on-LAN, Watchdog
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System temperature, PCH temperature, CPU temperature, Chipset Voltage, 3 -fan status, +5V, +3.3V, +12V, Monitors CPU Core Voltages
    FAN3x 4-pin fan headers (up to 3 fans)PWM fan speed controlThermal Control for 3 Fan Connectors
    Other FeaturesWOLATX Power connectorACPI power management8-pin 12v DC power connector12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
