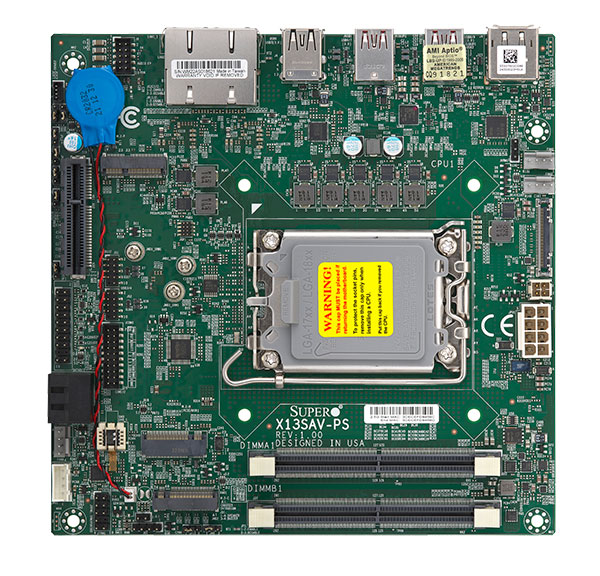

X13SAV-PS, Mini ITX, Alder Lake SoC,LGA1700, PCIe x4

• 12th Gen Intel® Core™ processors , Intel® Celeron® processors, SoC, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP
• Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz, in 2 SODIMM slots
• 1 PCIe 4.0 x4 slot1 M.2 M-Key 2280 (PCIe 4.0 x4)1 M.2 E-Key 2230 (PCIe 3.0 x1/USB2.0)1 M.2 B-Key 3052 (PCIe 3.0 x2/USB3.0/USB2.0)
• Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
• 4 Independent Displays (1 DP ports, 1 HDMI port, 2 TYPE C support DP/USB3.0)
• Supports 12V DC power input
• Onboard TPM2.0

• High-performance computing
• Network applications
• Embedded systems
• Gaming PCs

The Supermicro MBD-X13SAV-PS-O motherboard is an advanced solution tailored for a range of computing needs. It supports the latest 12th Gen Intel Core and Celeron processors with a single LGA-1700 socket and up to 65W TDP. The motherboard includes two SODIMM slots for up to 64GB of unbuffered non-ECC DDR5-4800MHz memory. With an array of connectivity options such as dual 2.5 Gigabit LAN, multiple USB ports, and support for four independent displays, users can achieve superior efficiency and performance. The motherboard also provides sophisticated power management and monitoring features, including onboard TPM 2.0 and multiple thermal sensors, for reliable and secure operations in various environments.
