X13 Server,WIO,UP,ADL-S Core,LGA1700,R680E,up to 150W, 4

MBD-X13SAW-F-O
https://safeconsulting.no/web/image/product.template/9714/image_1920?unique=7c1c8fe

kr 5,535.70 5535.7 NOK kr 5,535.70

kr 5,535.70

Not Available For Sale

    This combination does not exist.

    Summary Description

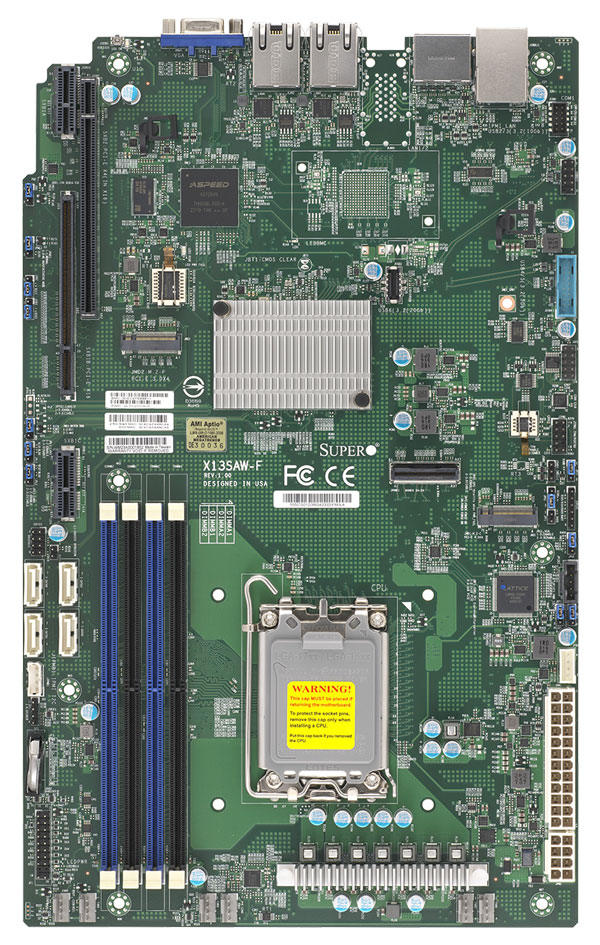

    Supermicro Motherboard MBD-X13SAW-F-O

    Product Highlights

    • 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
    • Intel® R680E
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
    • 1 PCIe 5.0 x16 slot,
      • 1 PCIe 4.0 x4 slots,
      • 2 PCIe 4.0 x4 MCIO
      • 1 M.2 M-Key 2280 (PCIe 3.0 x4)
      • 1 M.2 M-Key 2280/22110 (PCIe 4.0 x4)
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i226 LAN controller
    • Intel® R680E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 2 Independent Display Ports (2 DP1.4)
    • Supports 12V DC power input
    • Onboard TPM2.0

    Description

    Supermicro Motherboard MBD-X13SAW-F-O

    Product Specifications

    Product SKUs:
    MBD-X13SAW-F
    Physical Stats
    Form FactorProprietary WIO
    Dimension8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron ProcessorSingle Socket LGA-1700 supported
    CoreUp to 24 cores
    System Memory
    Memory Capacity4 DIMM slotsUp to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz*Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
    Memory Type4400/4000/3600 MT/s
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.1V
    On-Board Devices
    ChipsetIntel R680E
    SATAIntel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Network ControllersN/A
    Input / Output
    SATA4 SATA3 port(s)
    LAN2 RJ45 2.5 Gigabit Ethernet LAN port
    USB2 USB 2.0 port(s) (2 via header)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear type A)1 USB 3.2 Gen2 port(s) (1 via header)
    Video Output1 VGA port(s), 2 DP (DisplayPort) port(s)
    Serial Port1 COM Port(s) (1 header)
    TPMTPM TPM 2.0 onboard
    Expansion Slots
    PCIe1 PCIe 5.0 x16, 1 PCIe 4.0 x4
    M.2M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x4Form Factor: 22110, 2280, 2280Key: M-Key, M-Key
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.1SMBIOS 3.0 or laterPCI FW 3.0UEFI 2.7RTC (Real Time Clock) Wakeup
    Management
    SoftwareRedfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
    System Management SoftwareWake-on-LAN, Watchdog, KVM with dedicated LAN
    Power ConfigurationsACPI Power Management, ATX Power connector, +12V DC Power Input
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, Memory temperature, CPU temperature, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID, 6 fans with tachometer status monitoring
    LEDPower LED
    TemperatureMonitoring for CPU and chassis environmentCPU thermal trip support
    Other FeaturesRoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
    FAN6x 4-pin fan headers (up to 6 fans)
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
