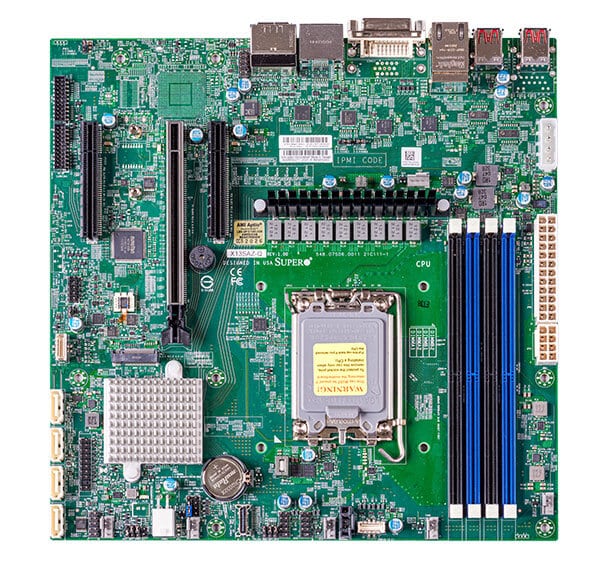

X13SAZ-Q,Micro ATX,Alder Lake-S,Q670E,LGA1700,1 PCIe 5.0

MBD-X13SAZ-Q-O
https://safeconsulting.no/web/image/product.template/9720/image_1920?unique=5a19258

kr 4,727.19 4727.1900000000005 NOK kr 4,727.19

kr 4,727.19

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X13SAZ-Q-O motherboard is designed for 14th/13th/12th Generation Intel Core processors, supporting up to 128GB of DDR5-4400MHz memory. With dual 2.5 Gigabit LAN, four SATA3 ports for RAID, multiple expansion slots, and support for four independent displays, it caters to high-performance and versatile computing needs.

    Key Features

    • 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP (**bios v3.x or above)
    • Intel® Q670E
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
    • 1 PCIe 5.0 x16 slot,2 PCIe 4.0 x4 slots,1 PCIe 4.0 x4 OCulink portM.2 Interface:1 PCIe 4.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
    • Intel® Q670E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 4 Independent Displays (2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port)
    • Supports 12V DC power input
    • Onboard TPM2.0

    Key Applications

    • High-performance computing
    • Data-intensive tasks
    • Multimedia production
    • Gaming
    • Workstation use
    • Server setups

    Description

    The Supermicro MBD-X13SAZ-Q-O motherboard supports the latest 14th/13th/12th Generation Intel Core, Pentium, and Celeron processors in a single socket LGA-1700 configuration. It features the Intel Q670E chipset, DDR5 memory support up to 128GB across four DIMM slots, and multiple expansion slots including PCIe 5.0 and 4.0. With Dual LAN, comprehensive I/O options, and on-board TPM 2.0, this motherboard is designed for robust and secure performance, making it suitable for various high-performance applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAZ-Q
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
    • Single Socket V0 supported
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s
    • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
    Memory Type
    • 4400/4000/3600 MT/s
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel Q670E
    SATA
    • Intel Q670E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Dual LAN with Intel® Ethernet i225LM
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) port(s)
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    Video Output
    • 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
    Serial Port
    • 4 COM Port(s) (2 header RS232/422/485; 2 header RS232)
    TPM
    • TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x16,
    • 2 PCIe 4.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: 1 PCIe 4.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.0 or later
    • PCI FW 3.0
    • UEFI 2.7
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • Wake-on-LAN, Watchdog
    Power Configurations
    • ACPI Power Management, ATX Power connector, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • VBAT, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    Other Features
    • RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00177-0N1Standard I/O Shield for X13SAZ with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00177-0N1Standard I/O Shield for X13SAZ with EMI Gasket
    QRG
    MNL-2477-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00178-0N-1U I/O Shield For SC515/813/815
    1U LHS Riser Card for CSE-510
    RSC-S-6G5-1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    4U CPU Heat Sink for Socket H(optional, not included)
    SNK-P0086AP4-CPU Active Heatsink for 4U chassis
    COM Port Cable
    CBL-CDAT-0604-40CM Dual Serial Port Cable with bracket
    Passive heatsink
    SNK-P0086-CPU Passive Heatsink for 1U chassis
    USB Cable
    CBL-CUSB-0835-Dual 55cm USB 3.2 Type A cable
