  2. X13 Server MicroATX, Catlow, UP, RPL-E Xeon E, LGA1700,

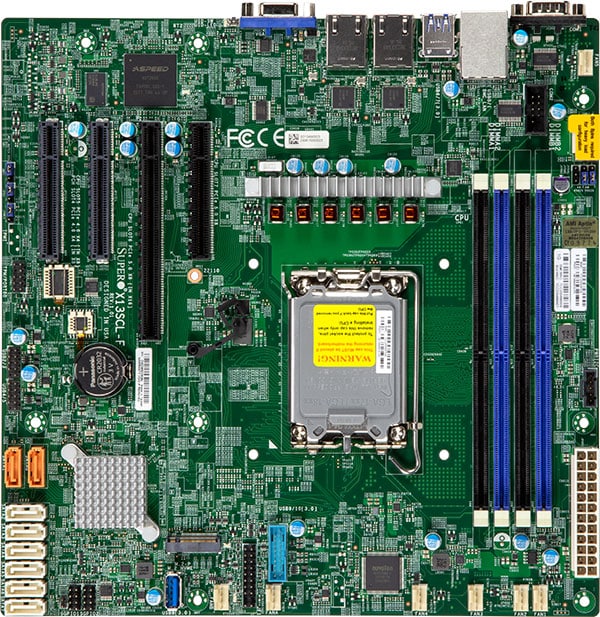

X13 Server MicroATX, Catlow, UP, RPL-E Xeon E, LGA1700,

MBD-X13SCL-F-O
https://safeconsulting.no/web/image/product.template/9726/image_1920?unique=160e743

kr 3,901.20 3901.2000000000003 NOK kr 3,901.20

kr 3,901.20

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Supermicro MBD-X13SCL-F-O features Intel® Xeon® E-2400 Series Processor support, up to 128GB DDR5 memory, dual LAN, and various expansion slots for advanced connectivity and performance.

    Key Features

    • Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
    • Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
    • 1 PCIe 5.0 x81 PCIe 5.0 x8 (in x16)2 PCIe 4.0 x4 (in x8)
    • Dual LAN with Intel® i210 Gigabit Ethernet Controller
    • M.2 Interface:1 PCIe 4.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • 4 USB 3.2 Gen1 ports (2 rear + 2 via header)6  USB 2.0 ports (2 rear+ 4 via header)1 USB 3.2 Gen1 Type-A header

    Key Applications

    • High-performance computing
    • Enterprise servers
    • Data centers
    • Professional workstations

    Description

    The Supermicro MBD-X13SCL-F-O motherboard is designed for optimal functionality and performance, featuring support for Intel® Xeon® E-2400 Series Processors and up to 128GB DDR5 memory. It includes Intel® C262 chipset for robust I/O and dual LAN with Intel® i210 Gigabit Ethernet controllers, providing superior data transfer speeds. The motherboard also offers multiple PCIe slots, M.2 interface, numerous USB ports, and comprehensive system management tools. Ideal for high-performance computing with extensive connectivity options, it is well-suited for professional and enterprise environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SCL-F
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® E-2400/Pentium®* Processor
    • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
    • *Pentium® G7400 and G7400T
    Core
    • Up to 8 cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
    Memory Type
    • 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
    DIMM Sizes
    • 8GB, 16GB, 32GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C262
    SATA
    • Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 Aspeed AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with 1GbE with Intel® I210
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 4.0 x4 (in x8 slot),
    • 1 PCIe 5.0 x8,
    • 1 PCIe 5.0 x8 (in x16 slot)
    M.2
    • M.2 Interface: 1 PCIe 4.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.5
    • UEFI 2.8
    • Plug and Play (PnP)
    • PCI FW 3.3
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • PECI
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • Fan speed control
    • Overheat LED indication
    • 7 fans with tachometer status monitoring
    Other Features
    • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield with EMI Gasket
    SATA Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield with EMI Gasket
    QRG
    MNL-2561-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L657.5 cm SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
