X13 Server,WIO,Catlow,UP,RPL-E Xeon E,LGA1700, C266

MBD-X13SCW-F-B
https://safeconsulting.no/web/image/product.template/9731/image_1920?unique=dec9d2d

kr 4,710.94 4710.9400000000005 NOK kr 4,710.94

kr 4,710.94

Not Available For Sale

    This combination does not exist.

    Summary Description

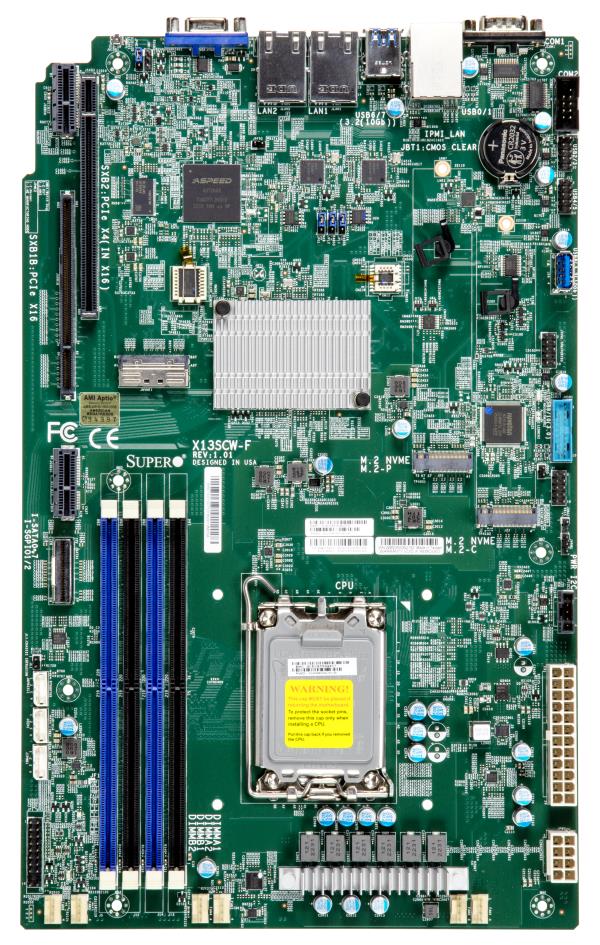

    Supermicro Motherboard MBD-X13SCW-F-B

    Product Highlights

    • Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
    • Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
    • 1 PCIe 5.0 x16 (Left Riser Slot)
      • 1 PCIe 4.0 x4 ( in x16, Right Riser slot)
    • M.2 Interface:2 PCIe 4.0 x4
      • M.2 Form Factor:2280, 22110
      • M.2 Key:M-Key
    • Dual LAN with Intel® i210 Gigabit Ethernet Controller
    • 3 USB 3.2 Gen2 ports (2 rear + 1 Type A)
      • 2 USB 3.2 Gen1 ports (via heaader)
      • 4 USB 2.0 ports (2 rear + 2 via header)

    Description

    Supermicro Motherboard MBD-X13SCW-F-B

    Product Specifications

    Product SKUs:
    MBD-X13SCW-F
    Physical Stats
    Form FactorProprietary WIO
    Dimension8" x 13" (20.32cm x 33.02cm)
    Processor
    CPUIntel® Xeon® E-2400/Pentium®* ProcessorSingle Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP*Pentium® G7400 and G7400T
    CoreUp to 8 cores
    System Memory
    Memory Capacity4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz
    Memory Type4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (1DPC)
    DIMM Sizes8GB, 16GB, 32GB
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C266
    SATAIntel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 Aspeed AST2600 BMC port(s)
    Network ControllersDual LAN with 1GbE with Intel® I210
    Input / Output
    SATA8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
    LAN2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
    USB4 USB 2.0 port(s) (2 via header; 2 rear)2 USB 3.2 Gen1 port(s) (2 via header)3 USB 3.2 Gen2 port(s) (2 rear; 1 type A)
    Video Output1 VGA D-Sub Connector port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 5.0 x16 Left Riser Slot, 1 PCIe 4.0 x4 Right Riser (in x16) slot
    M.2M.2 Interface: 2 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key
    System BIOS
    BIOS TypeAMI 32MB AMI UEFI
    BIOS FeaturesACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3
    Management
    SoftwareRedfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
    Power ConfigurationsACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
    LEDUID/Remote UIDCPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportPECI
    FAN6x 4-pin fan headers (up to 6 fans)Fan speed control6 fans with tachometer status monitoringOverheat LED indication
    Other FeaturesWOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
